AHC30A DIN Rail Weekly Programmable Digital Timer Switch

Unlike traditional mechanical timer switches, the AHC30A uses digital programming technology to provide more accurate time control, flexible weekly scheduling and reliable operation without manual switching. It is widely used for lighting systems, irrigation equipment, ventilation fans, heating devices, commercial facilities and low-voltage automation applications.

Manufactured by GOTOELE, a professional electrical equipment supplier in China, this DIN rail programmable timer switch provides an efficient solution for reducing energy consumption and improving unattended electrical management.

Product Design and Intelligent Control Functions

1. DIN Rail Modular Installation Design

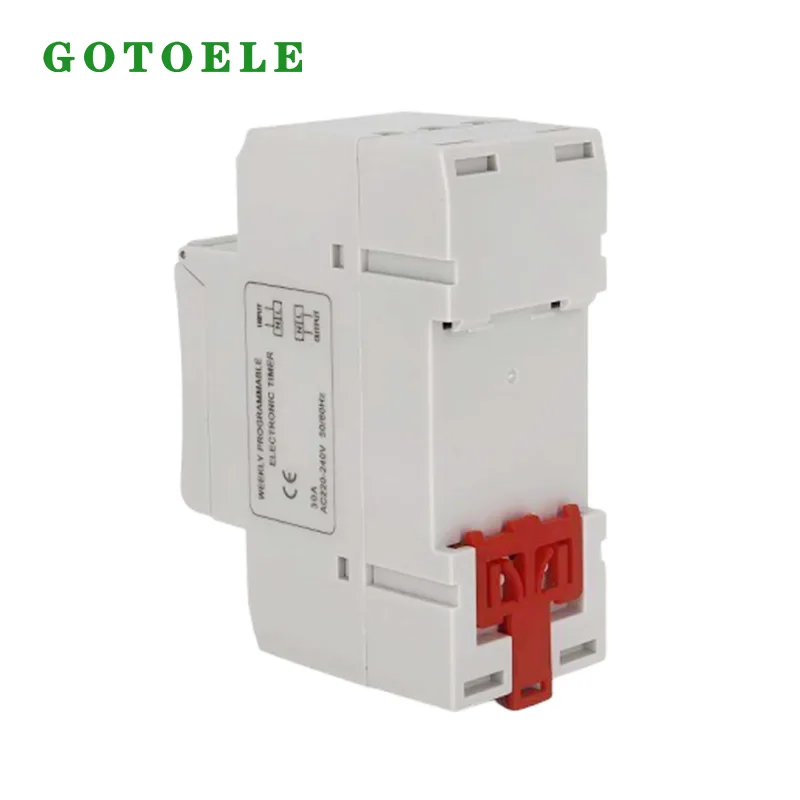

The AHC30A adopts a standard 35mm DIN rail mounting structure, allowing direct installation inside distribution boxes, electrical cabinets and control panels.

The compact modular design helps achieve:

· Cleaner wiring layout

· Space-saving installation

· Faster maintenance

· Easy replacement of traditional mechanical timers

It is suitable for both residential and industrial low-voltage distribution systems.

2. Digital LCD Display and Weekly Programming

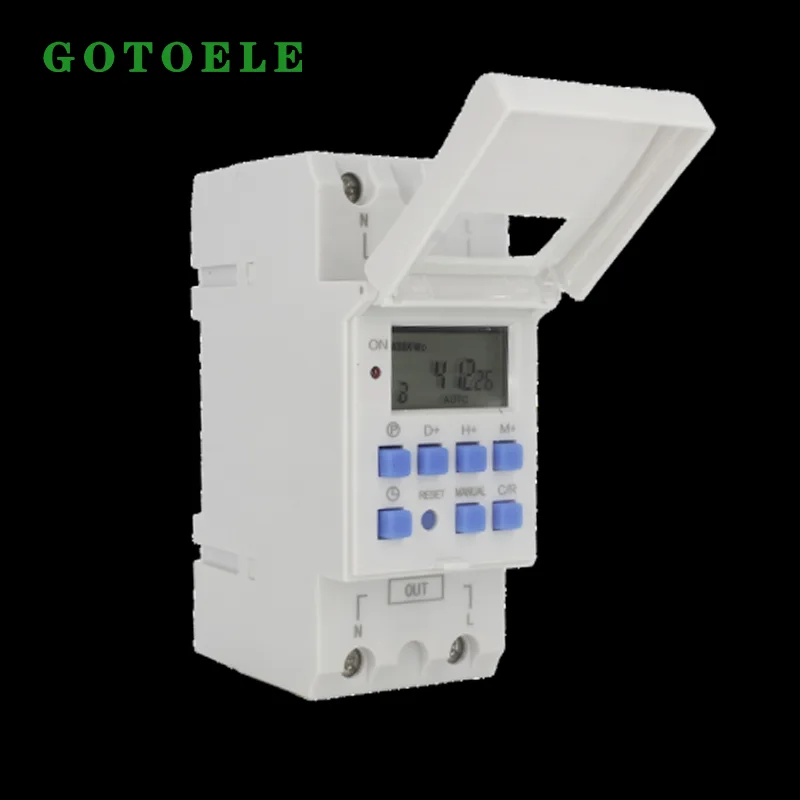

The built-in LCD screen clearly displays:

· Current time

· Weekday

· Program status

· Switching schedule

The timer supports multiple independent ON/OFF programs within a weekly cycle. Users can configure different operating schedules for weekdays, weekends or specific time periods according to actual application requirements.

For example:

· Turn on garden lighting at 18:00

· Switch off lighting at 23:00

· Automatically repeat the schedule every week

This improves energy efficiency without requiring daily manual operation.

3. 30A High-Current Direct Load Control

Equipped with 30A switching contacts, the AHC30A can directly control various single-phase loads without additional intermediate contactors in suitable applications.

Typical controlled equipment includes:

· Lighting systems

· Water pumps

· Ventilation fans

· Heating equipment

· Small electrical appliances

Compared with low-current timer switches, the higher load capacity provides more flexibility for commercial and industrial applications.

4. Backup Battery and Power Failure Memory

The built-in backup battery maintains clock information and programmed schedules during power interruptions.

After power recovery, the timer automatically resumes the preset program without requiring reconfiguration.

This function is especially useful for:

· Outdoor lighting systems

· Agricultural facilities

· Remote equipment locations

· Areas with unstable power supply

5. Manual Override and Holiday Mode

The AHC30A provides flexible operation modes including:

· Automatic timing mode

· Temporary manual ON/OFF mode

· Permanent ON/OFF mode

· Holiday schedule disable function

Users can temporarily control connected loads during maintenance or special occasions without changing the original timing programs.

Typical Application Scenarios

The AHC30A DIN Rail Weekly Programmable Digital Timer Switch is designed for automatic power management applications where scheduled operation and energy saving are required.

1. Public and Commercial Lighting Control

The timer switch is commonly used for:

· Corridor lighting

· Street lamps

· Garden lighting

· Landscape lighting

· Advertising light boxes

It automatically turns lights on during evening hours and switches them off according to preset schedules, reducing unnecessary electricity consumption.

2. Agricultural Equipment Automation

In agricultural environments, the AHC30A helps automate:

· Greenhouse lighting

· Irrigation pumps

· Ventilation fans

· Livestock equipment

Scheduled operation reduces manual labor requirements and supports stable farm management.

3. Commercial Building Energy Management

Suitable for:

· Store lighting

· Office equipment timing

· Water heaters

· Security lighting systems

The timer helps businesses reduce standby power consumption and optimize daily operating schedules.

4. Household Smart Timing Applications

Common residential uses include:

· Garden lights

· Fish pond oxygen pumps

· Electric heating devices

· Home charging equipment

Users can create automatic schedules to improve convenience and energy efficiency.

5. Small Industrial Equipment Control

The AHC30A can also control small industrial loads such as:

· Circulating water pumps

· Exhaust fans

· Drying equipment

· Auxiliary machines

It provides a simple alternative to complicated PLC-based timing control for basic automation requirements.

Global Application Experience

Southeast Asia Commercial Lighting Automation Project

The AHC30A DIN Rail Weekly Programmable Digital Timer Switch was installed in a commercial building lighting control system in Southeast Asia.

The project required automatic control of outdoor lighting to reduce unnecessary operation during non-business hours.

By using weekly programmable schedules, the timer automatically controlled lighting operation every day without manual switching. The customer achieved more efficient lighting management and reduced daily maintenance workload.

Project Details:

· Application: Commercial lighting automation

· Installation: Distribution control cabinet

· Function: Weekly ON/OFF scheduling

· Key requirements: Energy saving, reliable operation and easy maintenance

Technical Specifications

Quality Control and Manufacturing Capability

GOTOELE follows standardized manufacturing procedures to ensure reliable performance of each AHC30A DIN Rail Programmable Timer Switch.

Quality control includes:

· Electronic component inspection

· Circuit performance testing

· Function verification

· Load switching testing

· Final product inspection

Each product is checked before shipment to ensure stable timing accuracy and reliable switching performance.

With professional low-voltage electrical manufacturing experience, GOTOELE provides dependable automation control products for global customers.

Why Choose GOTOELE AHC30A Digital Timer Switch

1. Accurate Digital Time Control

The LCD programmable system provides precise weekly scheduling compared with traditional mechanical timers.

2. Higher Load Capacity

The 30A contact design supports more demanding electrical loads and reduces the need for additional switching devices.

3. Flexible Programming Options

Multiple timing schedules, manual override and holiday functions allow adaptation to different applications.

4. Easy Installation and Maintenance

Standard DIN rail mounting enables quick installation in common distribution boxes and electrical cabinets.

Packaging and Delivery

Each AHC30A DIN Rail Weekly Programmable Digital Timer Switch is packed with protective packaging materials to prevent damage during transportation.

GOTOELE supports standard export packaging, bulk supply and OEM customization including product labeling and packaging requirements.

FAQ

Q1: What is the main application of the AHC30A timer switch?

The AHC30A is mainly used for automatic ON/OFF control of lighting systems, pumps, fans, heating equipment and other single-phase electrical loads.

Q2: Can the AHC30A work after a power failure?

Yes. The built-in backup battery keeps the clock and programmed schedules during power interruption. The timer automatically resumes operation after power recovery.

Q3: What is the difference between a digital timer switch and a mechanical timer?

A digital timer provides more accurate timing, flexible weekly programming and memory functions, while mechanical timers usually have limited scheduling capability and may suffer from mechanical wear.

Q4: Can the AHC30A be installed in a distribution box?

Yes. The product adopts standard 35mm DIN rail mounting and can be installed in residential, commercial and industrial distribution cabinets.

Q5: Does GOTOELE support OEM customization?

Yes. GOTOELE provides OEM services including customized labels, packaging and product specifications according to customer requirements.
