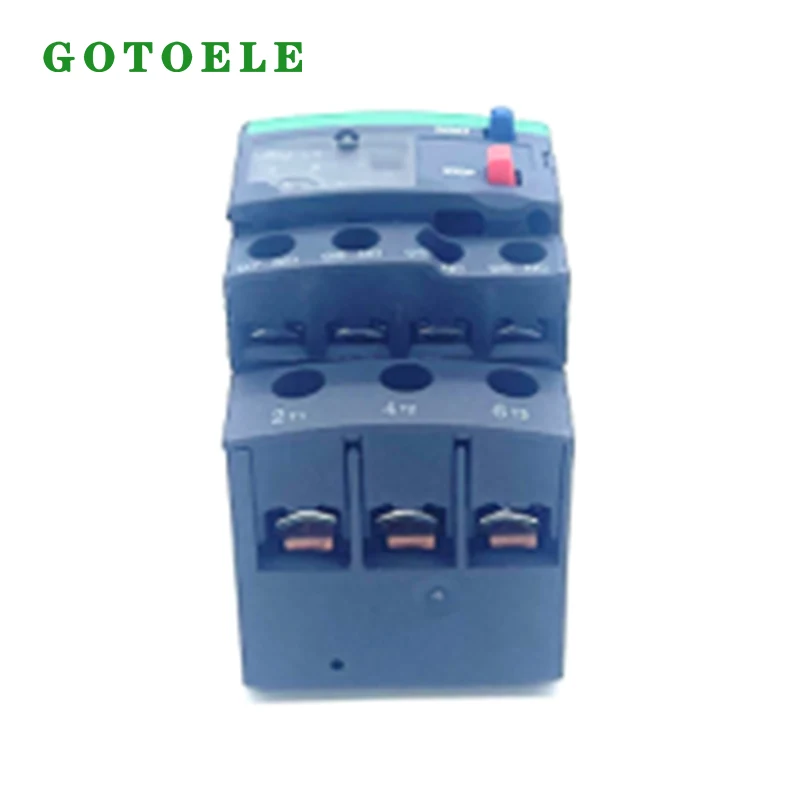

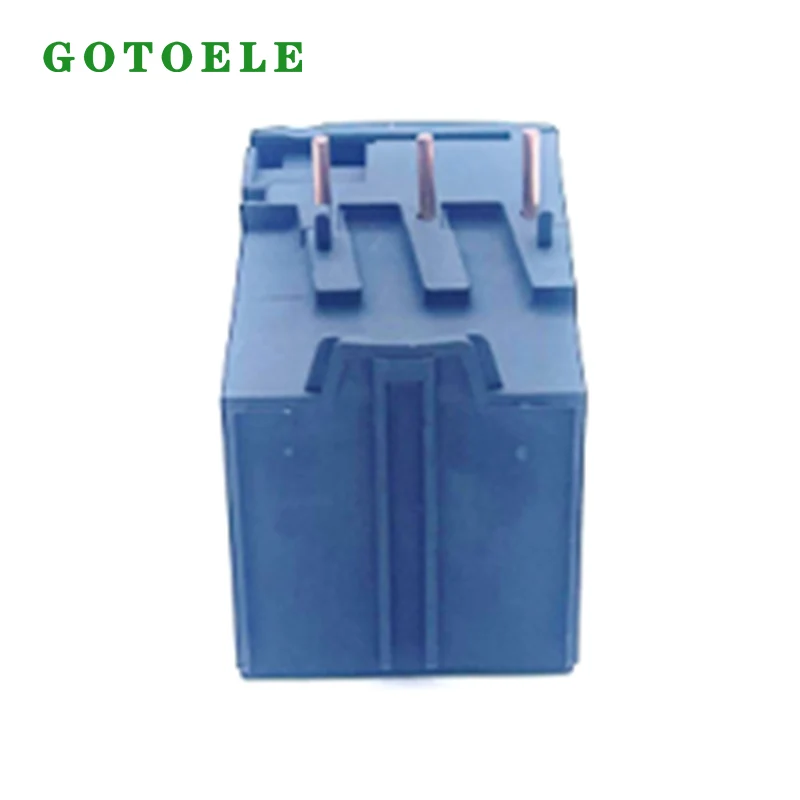

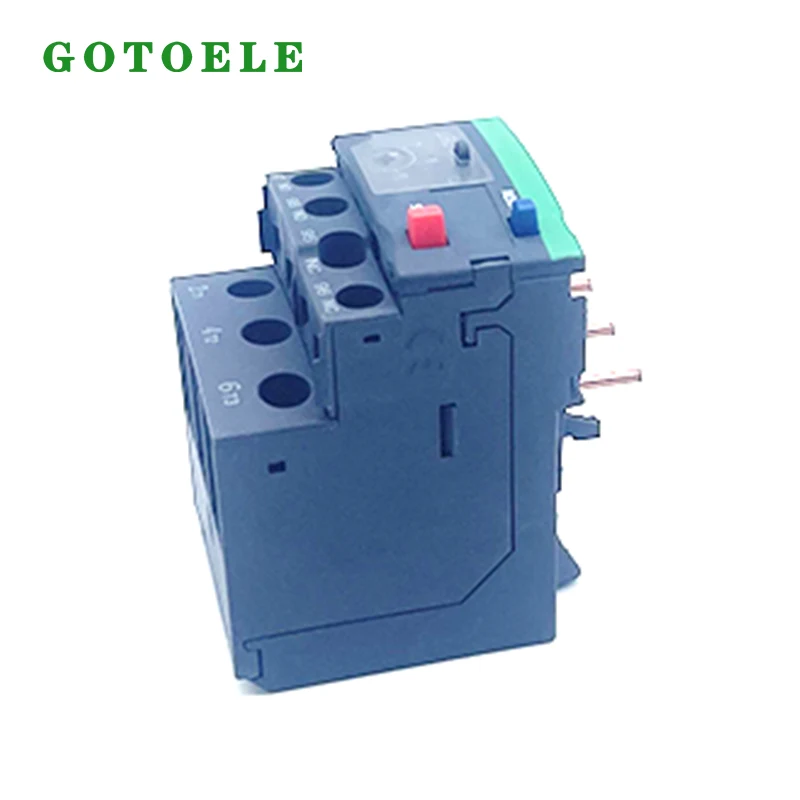

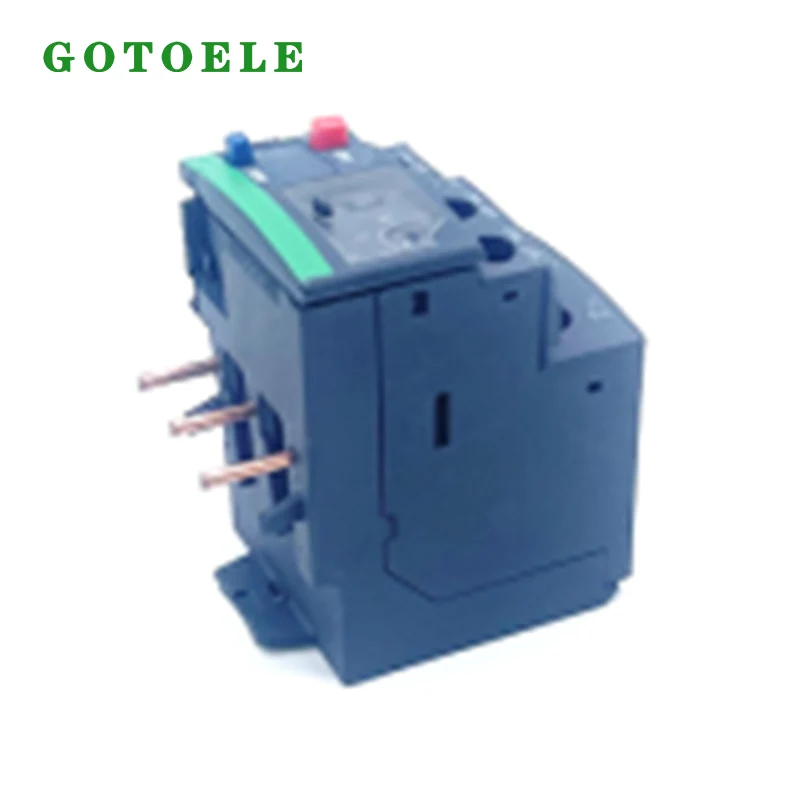

LRD-13 Thermal Overload Relay 0.063-0.1A

The GOTOELE LRD-13 Thermal Overload Relay 0.063-0.1A is a high-precision industrial control component, specifically designed to provide overload, phase loss, and current imbalance protection for miniature AC motors with a rated power ≤0.1kW. It can operate stably at 50/60Hz frequencies and a maximum AC voltage of 660V, featuring precise current setting, sensitive trip response, and reliable reset. It is suitable for precision instruments, small automation systems, compact control cabinets, and miniature drive equipment, ensuring the safe operation of core miniature motors.

Core Technical Parameters

Core Product Advantages

1. High-Precision Protection, Stable and Reliable

The LRD-13 Thermal Overload Relay 0.063-0.1A employs a high-sensitivity bimetallic strip and precise calibration technology, accurately sensing micro-current changes within 0.063-0.1A. It quickly triggers protection in case of overload or phase loss, preventing burnout of the micro-motor windings. Silver alloy contacts reduce resistance and heat generation, while the flame-retardant housing enhances safety, making it suitable for the long-term high-frequency operation requirements of precision equipment.

2. Strong Compatibility, Easy System Integration

Supports direct mounting with LC1-D series contactors and standard DIN rail mounting. It is compatible with auxiliary contact modules (F4 series), time delay modules (LA2-DT), and other accessories, allowing for flexible configuration to suit different micro-automation systems without secondary modifications, reducing integration costs.

3. Compact Structure, Convenient Installation and Maintenance

The LRD-13 Thermal Overload Relay 0.063-0.1A is small and lightweight, saving over 30% of control cabinet space compared to traditional relays. It supports tool-free manual reset and trip testing, features clear wiring terminals, standardized installation dimensions, and can directly replace similar products from international brands, improving installation and maintenance efficiency.

4. High-Performance OEM Solution, Customizable

As a high-quality alternative to imported brands, it offers comparable performance at a 20%-30% cost reduction. OEM/ODM customization is supported, providing services such as parameter adjustment, logo printing, and packaging design to meet the brand and functional needs of global customers.

Real-world Application Case

German Precision Medical Equipment Production Line

In 2024, a German medical equipment manufacturer applied the GOTOELE LRD-13 Thermal Overload Relay 0.063-0.1A to the micro-motor protection system of a precision pipetting production line. The micro-drive motor (rated current 0.08A) of this production line operates for 12 hours daily, with 60-90 start-stop cycles, requiring extremely high overload protection accuracy.

Performance after 12 months of continuous operation:

- Zero product failures, accurate and stable trip protection;

- Completely eliminates motor burnout accidents caused by overload and phase loss;

- Compared to the original imported brand, equipment maintenance costs are reduced by 35%, and production line operating efficiency is increased by 20%.

Customer feedback indicates that GOTOELE micro-current relays demonstrate superior accuracy and reliability in precision equipment, fully meeting the high standards of the medical industry.

Production, Quality Control, and Packaging

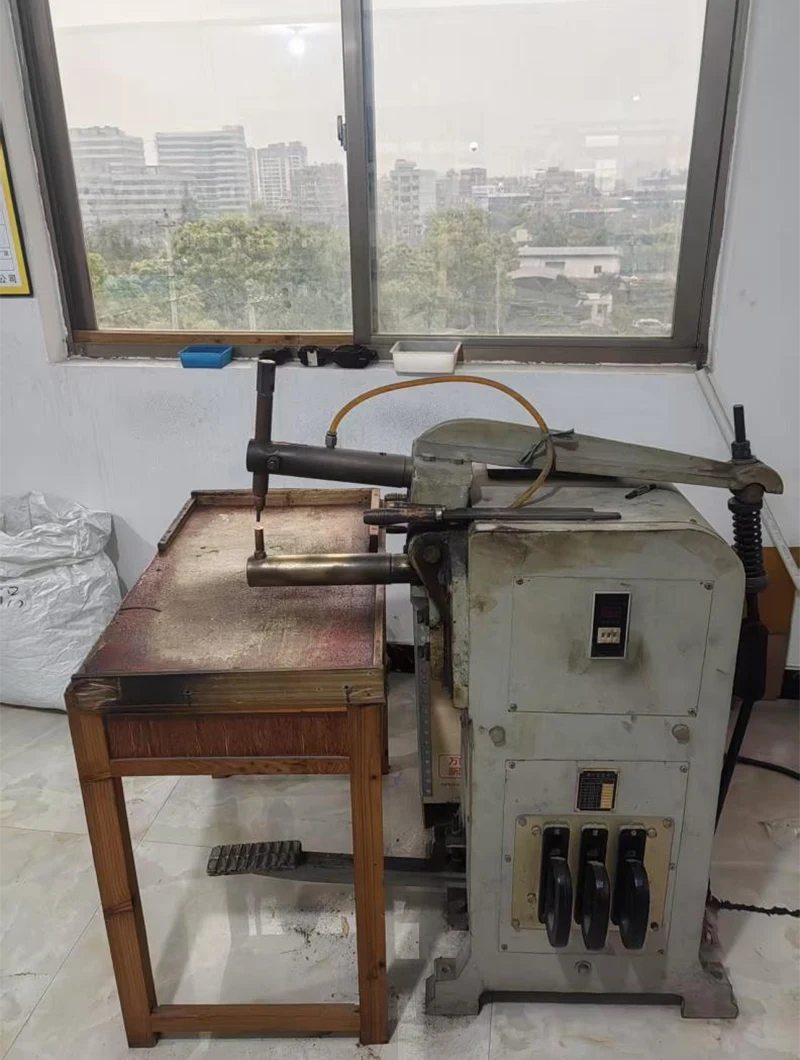

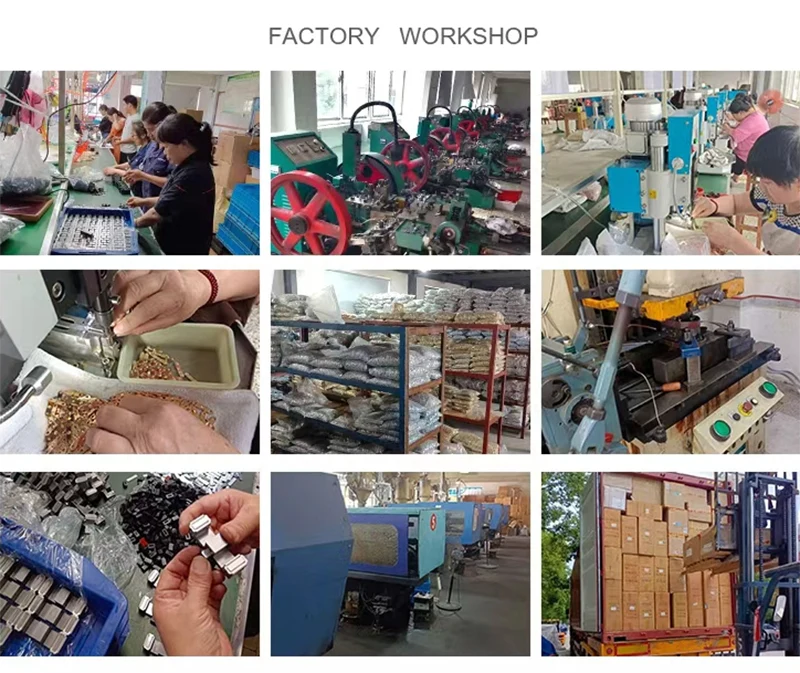

1. Production Base: Production is carried out in GOTOELE's modern factory in Zhejiang, China, with over 10 years of experience in low-voltage electrical manufacturing. Automated production lines ensure consistent product quality.

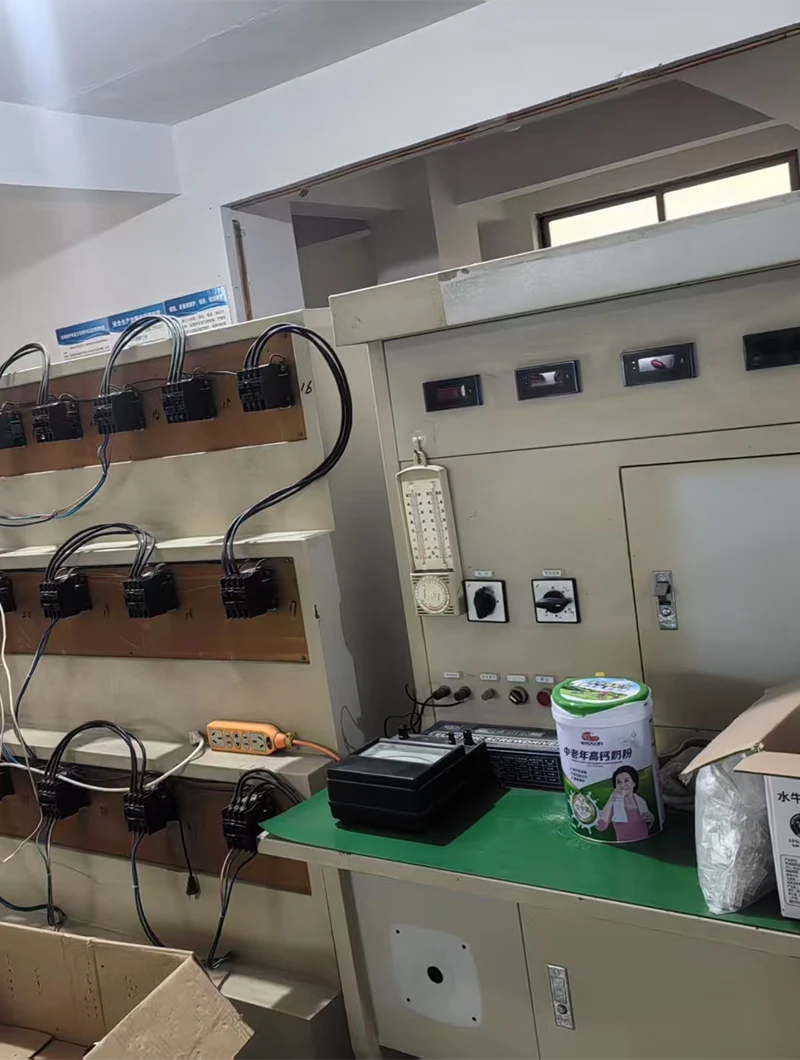

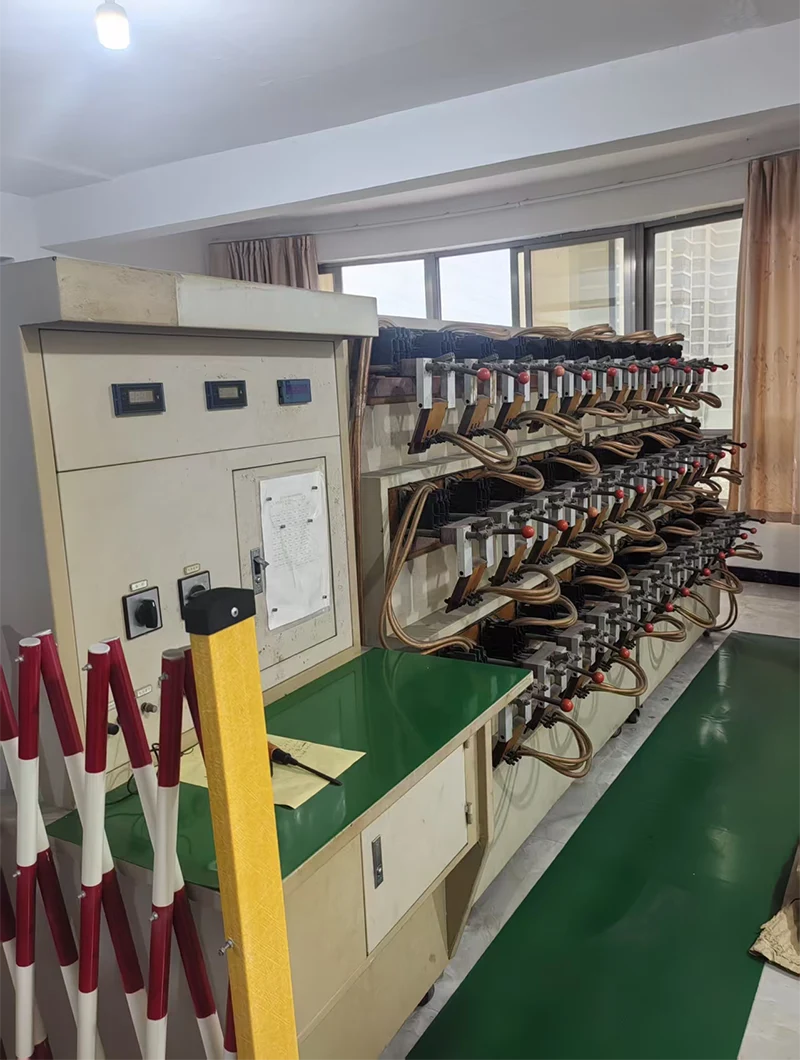

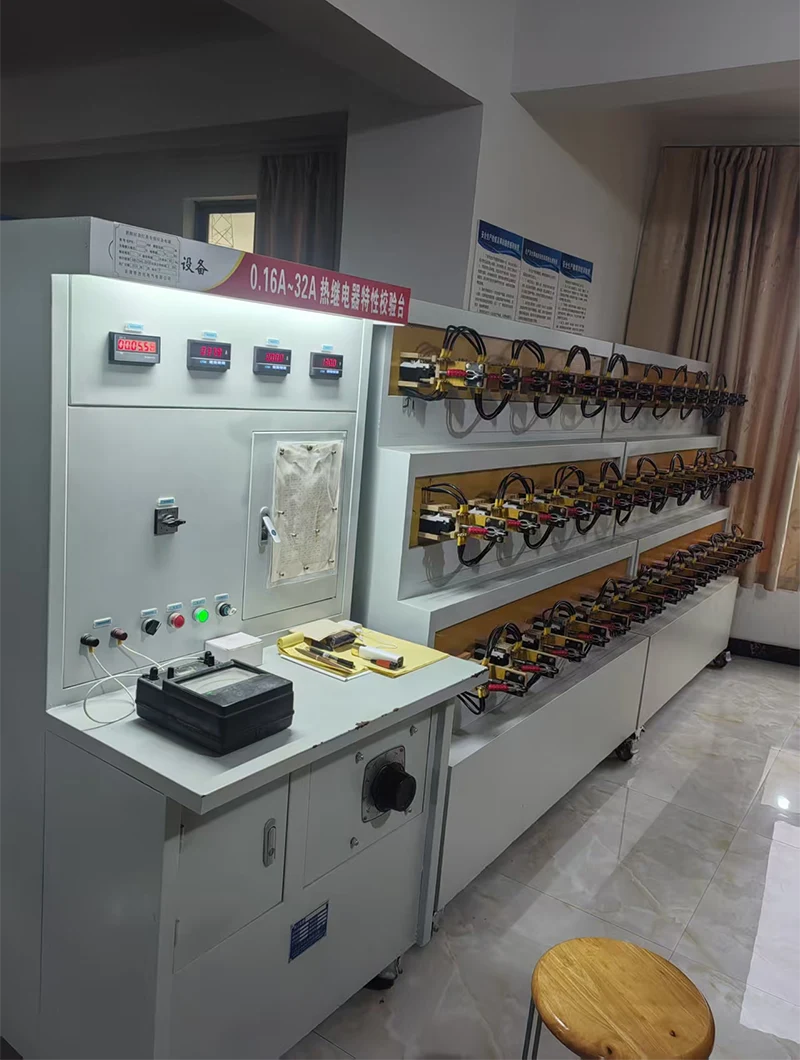

2. Quality Inspection: 100% full inspection before leaving the factory, including micro-current calibration, contact resistance testing, mechanical life testing, and temperature compensation testing, complying with CE and ISO9001 standards.

3. Packaging and Delivery: Standard export carton packaging to avoid damage during transportation; bulk orders are delivered in 7-12 days; customized packaging and brand printing services are supported.

FAQ

Q1: Is the LRD-13 Thermal Overload Relay 0.063-0.1A suitable for all micro-motor protection scenarios?

A1: Primarily suitable for AC motors with a rated current of 0.063-0.1A (≤0.1kW), adaptable to continuous or frequent start-stop scenarios; not recommended for DC motors, ultra-high-speed motors, and equipment with large instantaneous impact loads. Parameters for special motors need to be confirmed in advance.

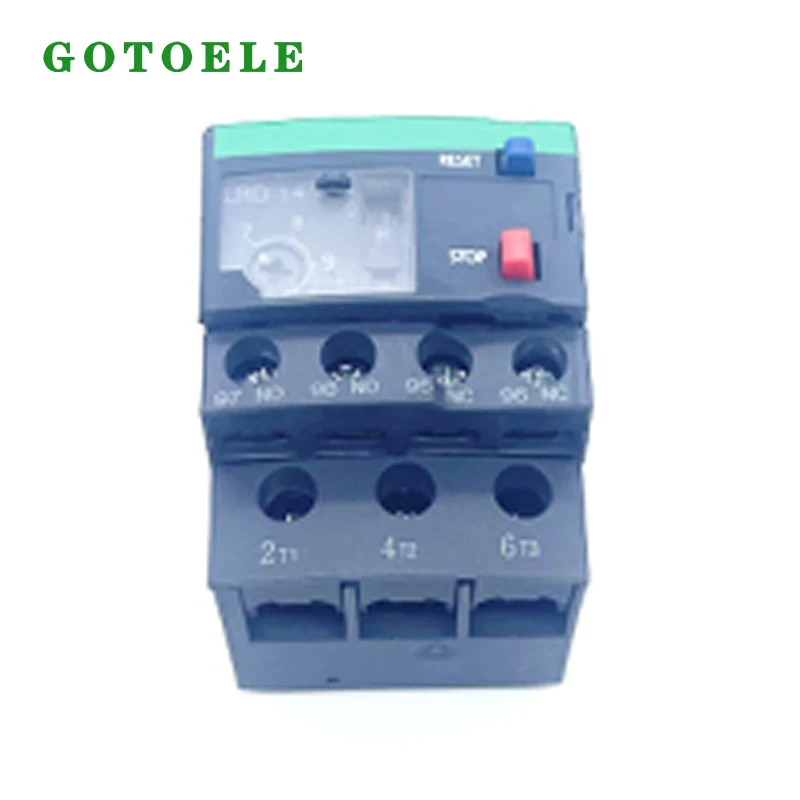

Q2: How to set the trip current and select the reset method?

A2: Trip current is set via the panel dial to match the motor's rated current; supports manual/automatic reset switching: manual reset is recommended for critical equipment to prevent accidental restart after a fault; automatic reset can be selected for unattended small equipment to simplify operation.
