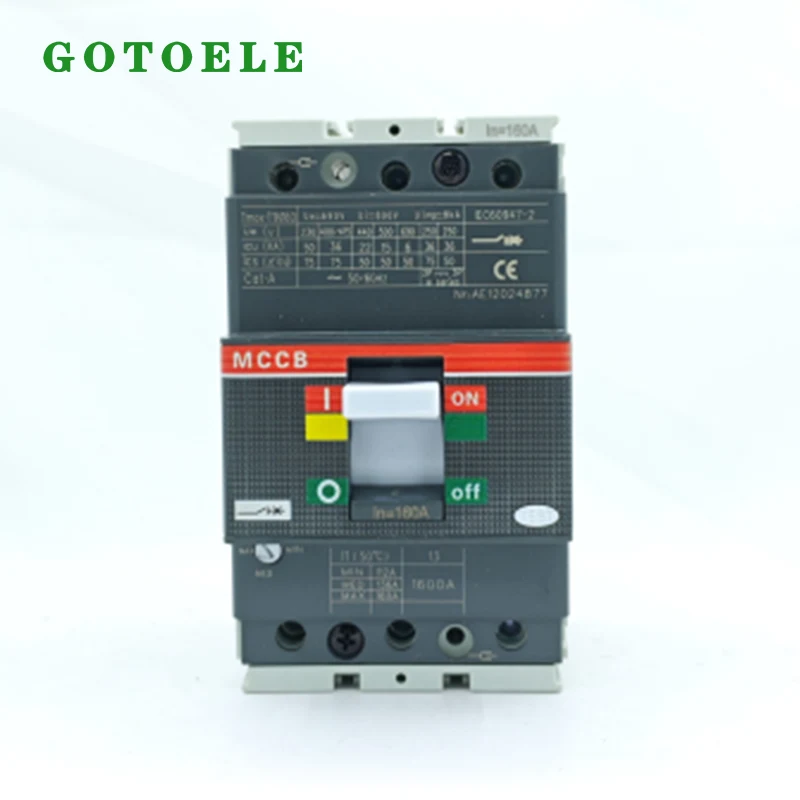

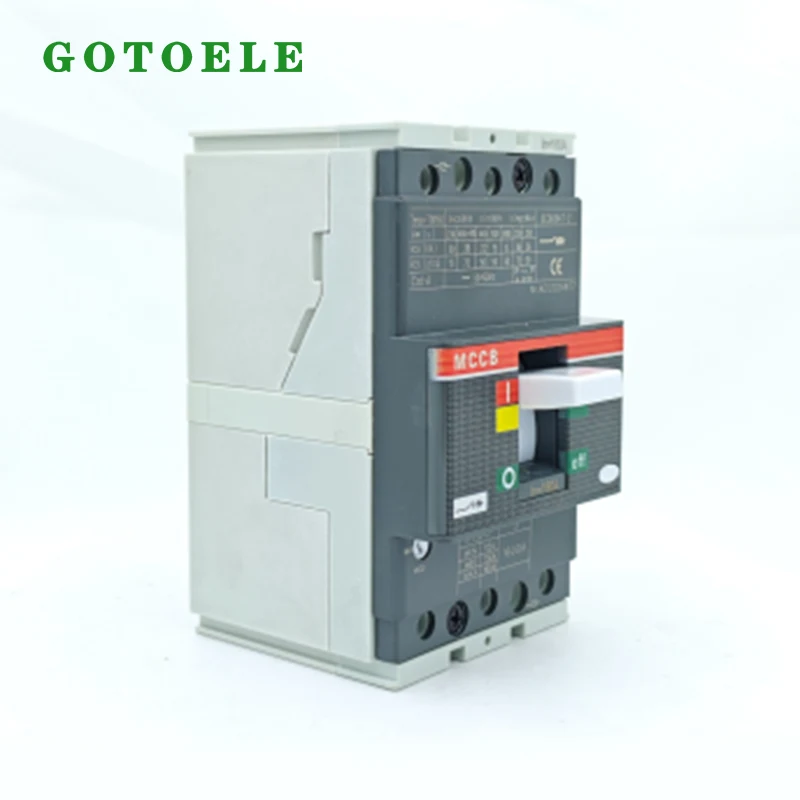

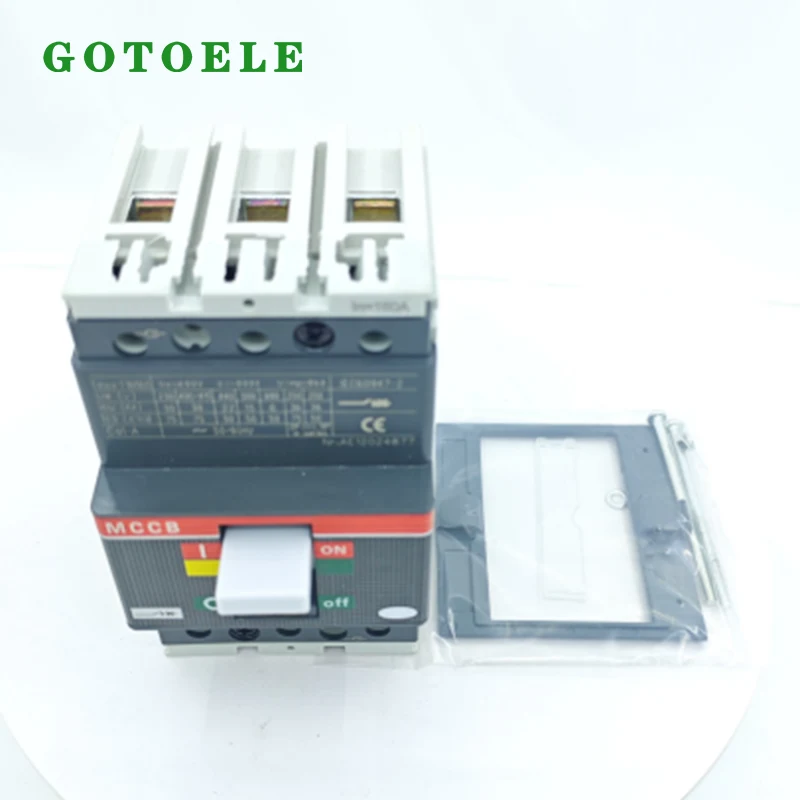

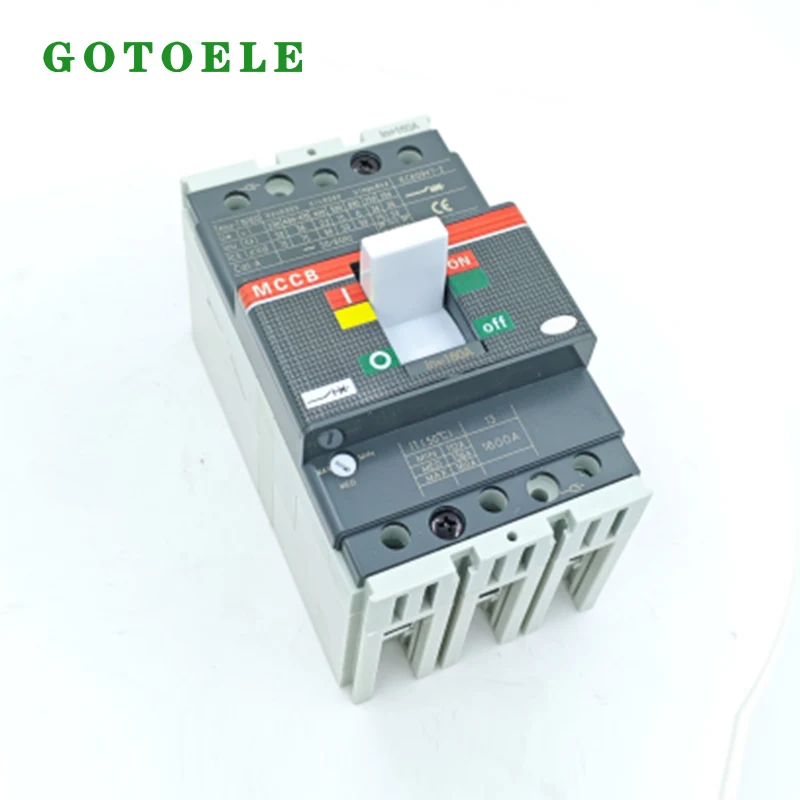

ABB TMAX Series Moulded Case Circuit Breaker 3P 63A - 1600A

The ABB TMAX Series Moulded Case Circuit Breaker 3P 63A - 1600A is GOTOELE's flagship industrial switchgear, precisely positioned as a dedicated control and protection solution for AC motors. The product design can withstand high-frequency start-stop operations, maintaining stable performance in harsh environments such as manufacturing plants, automated production lines, and power distribution switchgear, ensuring the continuity and safety of industrial production.

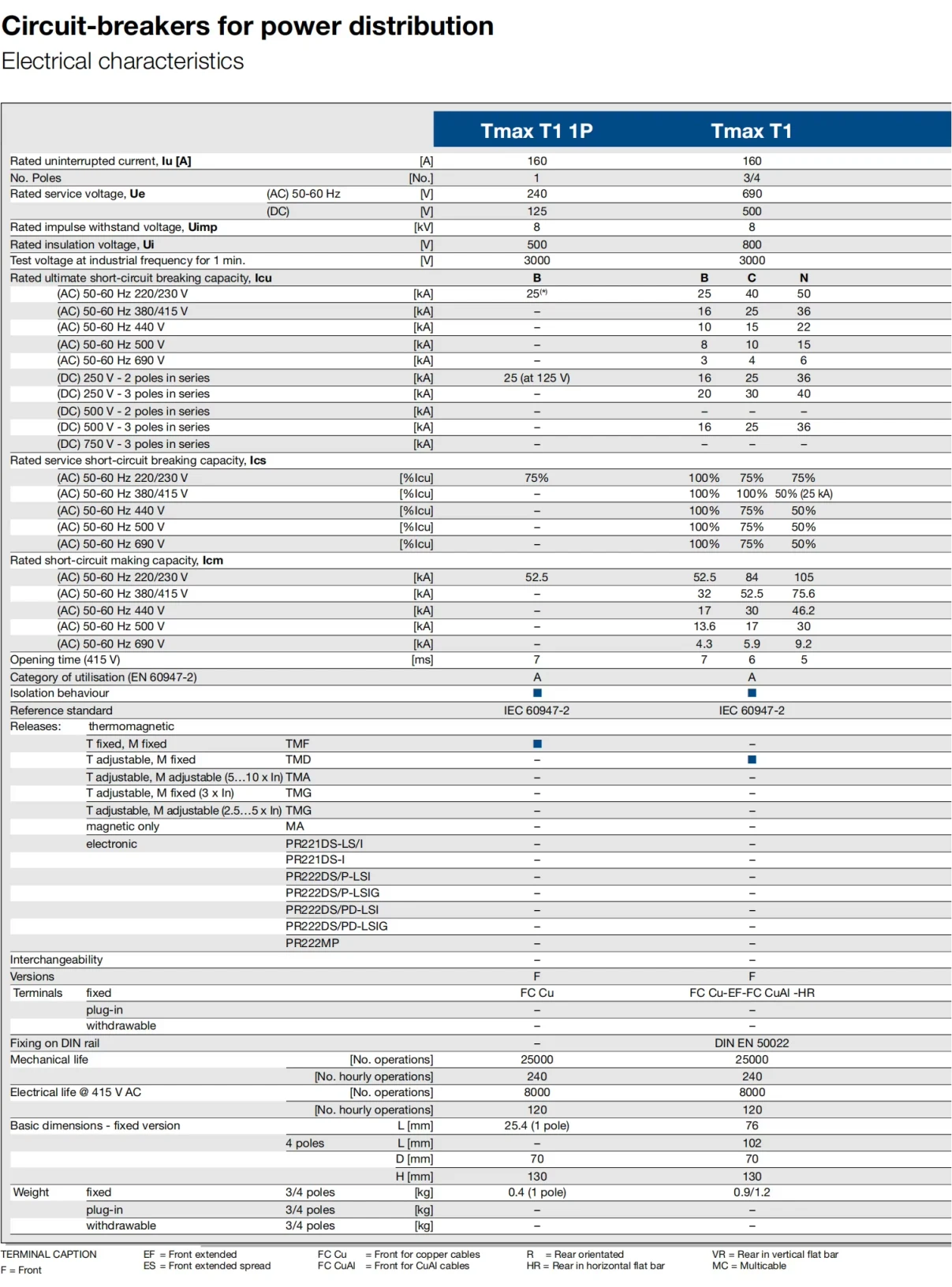

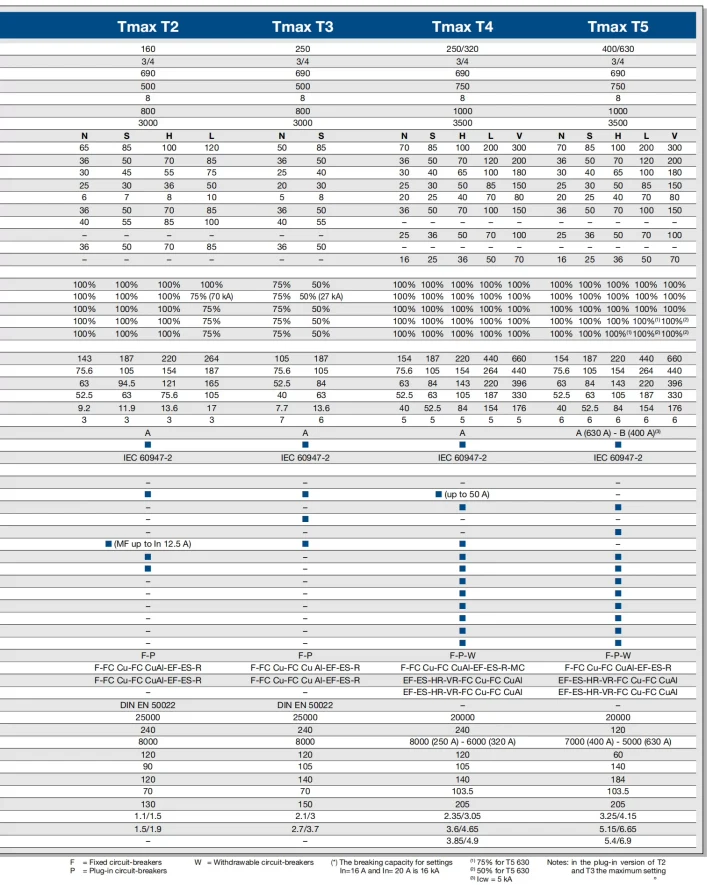

Core Technical Parameters

Core Product Features and Advantages

1. High-Frequency Operation, Ultra-High Durability

Utilizing high-quality silver alloy contacts and a robust mechanical structure, the TMAX-3P/160A boasts an electrical life of over 1 million cycles, far exceeding standard industrial circuit breakers. It maintains stable performance even under high-frequency motor start-stop cycles, avoiding frequent replacements and reducing maintenance costs.

2. Excellent Environmental Adaptability

The ABB TMAX Series Moulded Case Circuit Breaker 3P 63A - 1600A's flame-retardant housing possesses excellent insulation, heat resistance, and impact resistance, enabling reliable operation under harsh conditions such as high dust, high humidity, and temperature fluctuations, making it suitable for heavy-duty industrial applications.

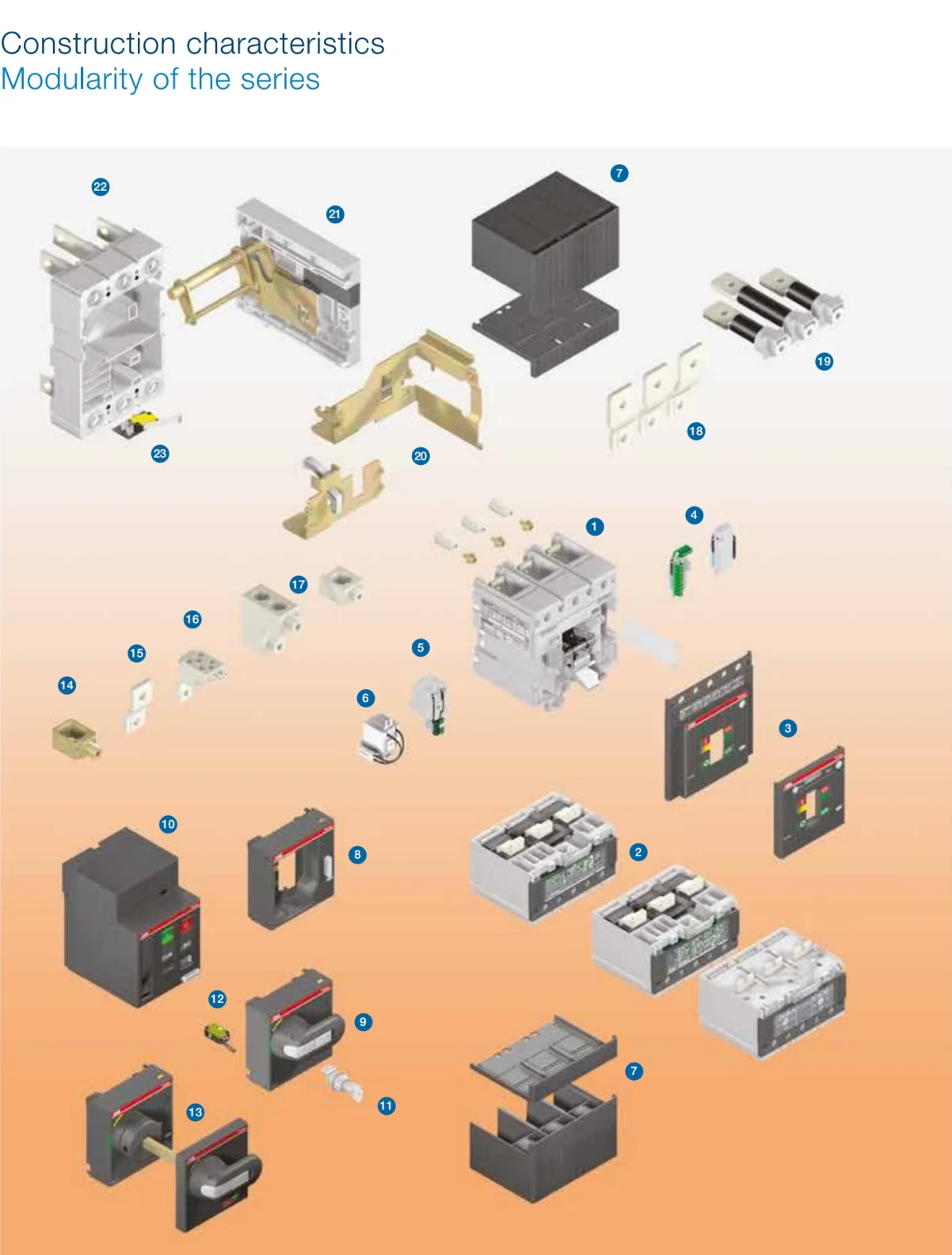

3. Modular Design, Flexible Configuration

Supports seamless expansion of auxiliary contacts, delay timers, and interlocking mechanisms. The modular design allows for flexible adaptation to various industrial automation systems, meeting customized control and protection needs.

4. Comprehensive Protection, Strong Compatibility

Integrates overload protection (requires a thermal relay), short-circuit protection, and remote switching functions. Compatible with voltages up to 660V and 50/60Hz power grids, it is widely adaptable to industrial equipment worldwide.

5. Rigorous Quality, Global Certification

The ABB TMAX Series Moulded Case Circuit Breaker 3P 63A - 1600A is manufactured according to stringent quality control standards, is CE and ISO9001 certified, and comes with an 18-month warranty and reliable after-sales service, further enhancing its applicability in international OEM projects.

Real-world Application Case Study

Case Study: Automated Production Line for German Automotive Parts Manufacturing

A leading German automotive parts manufacturer was looking for a high-performance circuit breaker for its automated assembly line. The line's 160A AC motors operated 24/7, starting and stopping 8-10 times per minute. Frequent failures of traditional circuit breakers resulted in high downtime costs.

After evaluating multiple brands, the manufacturer ultimately selected GOTOELE's ABB TMAX Series Moulded Case Circuit Breaker 3P 63A - 1600A.

1. Challenges Addressed

- High-frequency operation caused premature wear of standard circuit breaker contacts;

- Harsh factory environment with metal dust and temperature fluctuations;

- Reliable protection was required to prevent unplanned downtime.

2. Solutions and Results

- The ABB TMAX Series Moulded Case Circuit Breaker 3P 63A - 1600A features silver alloy contacts and a long mechanical life, easily handling 24-hour high-frequency cyclic operation;

- The flame-retardant, dustproof housing maintains stable performance in harsh environments;

- Modular auxiliary contacts integrate with PLC systems for remote monitoring and control;

3. Results

After 12 months of continuous operation, no failures or performance degradation were observed. Production line availability increased from 89% to 98.5%, and maintenance costs decreased by 65%. The customer has expanded the product deployment to 3 production lines and designated GOTOELE as a long-term supplier.

FAQ

Q1: Is the ABB TMAX Series Moulded Case Circuit Breaker 3P 63A - 1600A only suitable for 380V systems? Can it be adapted to other voltages?

A: The TMAX-3P/160A supports a wide AC voltage range up to 660V, compatible with 220V, 380V, 440V, and 660V power grids, operating at 50/60Hz, and suitable for global industrial power supply systems.

Q2: Can this molded case circuit breaker be used directly for motor starting? Are any additional components required?

A: The product is specifically designed for motor control and can be used directly for motor starting. For optimal overload protection, it is recommended to use it with a thermal relay. Remote control is also supported via auxiliary contacts or an external control module.

Q3: What is the typical lifespan of the product in actual industrial applications? How should it be maintained?

A: The product's rated electrical life is ≥1 million operations. Under normal operating conditions, its lifespan can reach 5-8 years. Maintenance recommendations: Inspect terminals and contacts annually, clean dust, and check for loose components; GOTOELE provides detailed maintenance guidelines.

The GOTOELE ABB TMAX Series Moulded Case Circuit Breaker 3P 63A - 1600A stands out in the industrial circuit protection field thanks to its superior durability, flexible scalability, and reliable performance. As a trusted Chinese manufacturer and supplier, GOTOELE integrates advanced technology with rigorous quality control to provide cost-effective solutions for industrial automation worldwide. This product has been proven in demanding applications, ensuring stable motor control, reducing downtime, and improving production efficiency, making it the preferred choice for OEMs and industrial operators globally.
