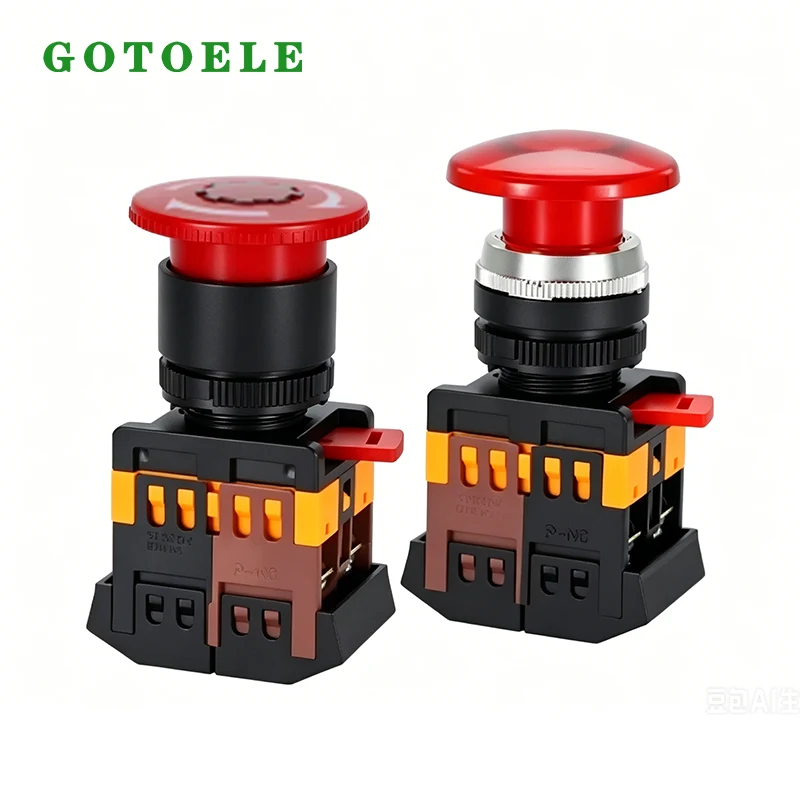

APBB Series 22mm - 25mm Push Button Switch

GOTOELE is a professional low-voltage electrical equipment provider with extensive experience in the R&D and production of industrial control components. Based on its strong technological foundation and rigorous quality control system, the company developed the APBB Series 22mm - 25mm Push Button Switch—a high-performance industrial switch specifically tailored for the motor control needs under high-frequency operating conditions. This product combines long lifespan and stable performance, making it a reliable control solution for modern global industrial automation systems.

Key Product Features

1. Heavy-Duty and High Durability

The robust design of the APBB Series 22mm - 25mm Push Button Switch allows it to withstand continuous high-frequency operation in harsh industrial environments. Suitable for manufacturing plants, automated production lines, and control panels, its robust design ensures mechanical stability under long-term stress.

2. Wide Electrical Compatibility

Supports a maximum operating voltage of 660V AC, with a rated insulation voltage of 600V AC and a rated thermal current of 10A, ensuring safe and stable operation in various low-voltage control systems.

3. Modular and Flexible Design

The APBB Series 22mm - 25mm Push Button Switch features a fully modular architecture, allowing for easy expansion of auxiliary contacts, delay timers, and interlocking mechanisms. This adaptability enables seamless integration into customized automation equipment.

4. Excellent Environmental Adaptability

With an IP65 enclosure protection rating, it effectively protects against dust, moisture, and industrial contaminants, ensuring stable operation in harsh environments.

5. High Cost-Effectiveness and Reliability

Combining superior manufacturing quality with competitive pricing, it provides industrial operators with excellent long-term value and reduces total cost of ownership.

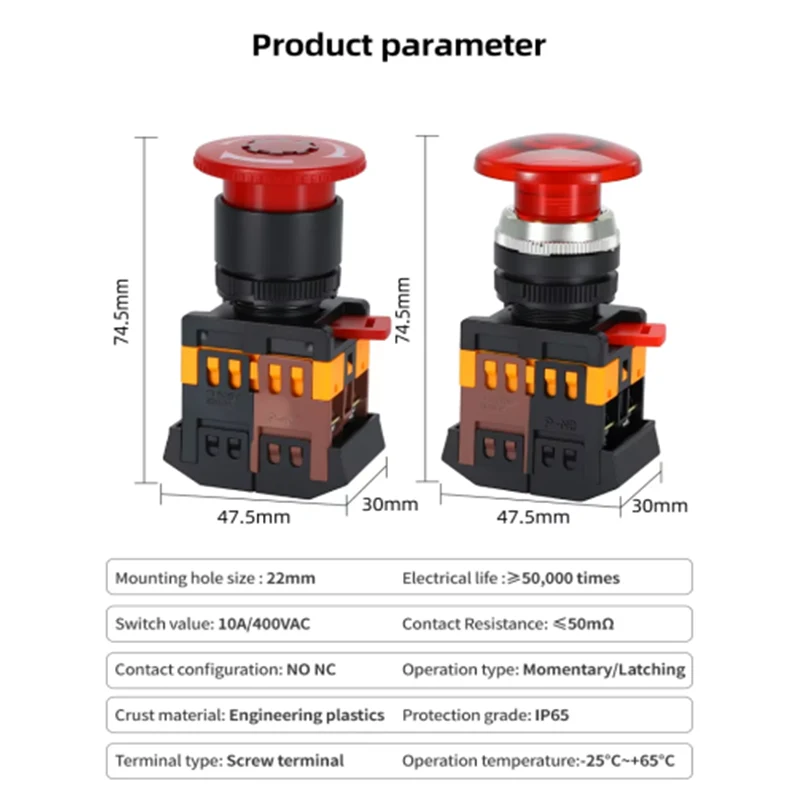

Core Parameters

Main Application Scenarios

The APBB Series 22mm - 25mm Push Button Switch is designed for the following key industrial control scenarios:

1. High-frequency AC motor control

Primarily used for start-stop control of motors in conveyor systems, pumps, and machine tools. These scenarios have extremely high requirements for high-frequency operational reliability.

2. Remote circuit switching

Enables safe, remote control of electrical circuits in automated switchboards and distributed control systems.

3. Integrated overload protection

Seamlessly integrates with thermal relays to provide comprehensive motor overload protection, preventing equipment damage.

4. Switchboard and switch cabinet control

Suitable for installation in industrial control switchboards, motor control centers (MCCs), and electrical switch cabinets, meeting the requirements for durability and ease of use.

Real-world application case

Case Study: German automotive parts production line

A leading German automotive parts factory required a high-performance push button solution to control over 120 conveyor motors on its gearbox assembly line. The factory operates 24/7, with each motor starting and stopping over 1000 times per day. The previously used standard push buttons frequently failed, resulting in significant downtime losses. After switching to GOTOELE APBB22&25 products:

- Operational stability: The button has operated continuously and stably for over 18 months without failure, while the previous product's lifespan was only 3-4 months.

- Production efficiency: Production line downtime reduced by 92%, annual capacity increased by 15%.

- Cost savings: Maintenance and replacement costs reduced by €120,000 annually. Currently, this customer has designated GOTOELE APBB22&25 as the standard control element for all its European production sites.

FAQ

Q1: What mounting sizes does the APBB Series 22mm - 25mm Push Button Switch support, and how difficult is installation?

A: The APBB22&25 series is compatible with 22mm and 25mm standard panel mounting holes, conforming to general industrial specifications. Its tool-free modular design allows for quick snap-fit assembly of contacts and accessories, reducing installation time by 50% compared to traditional models.

Q2: What are the mechanical and electrical lifespans of the APBB Series 22mm - 25mm Push Button Switch?

A: The product is designed for high-frequency applications, with a mechanical life of ≥500,000 cycles and an electrical life of ≥100,000 cycles under rated load (380V AC, 10A). High-quality contact materials ensure stable conductivity and reduce wear even under heavy loads and repeated use.
