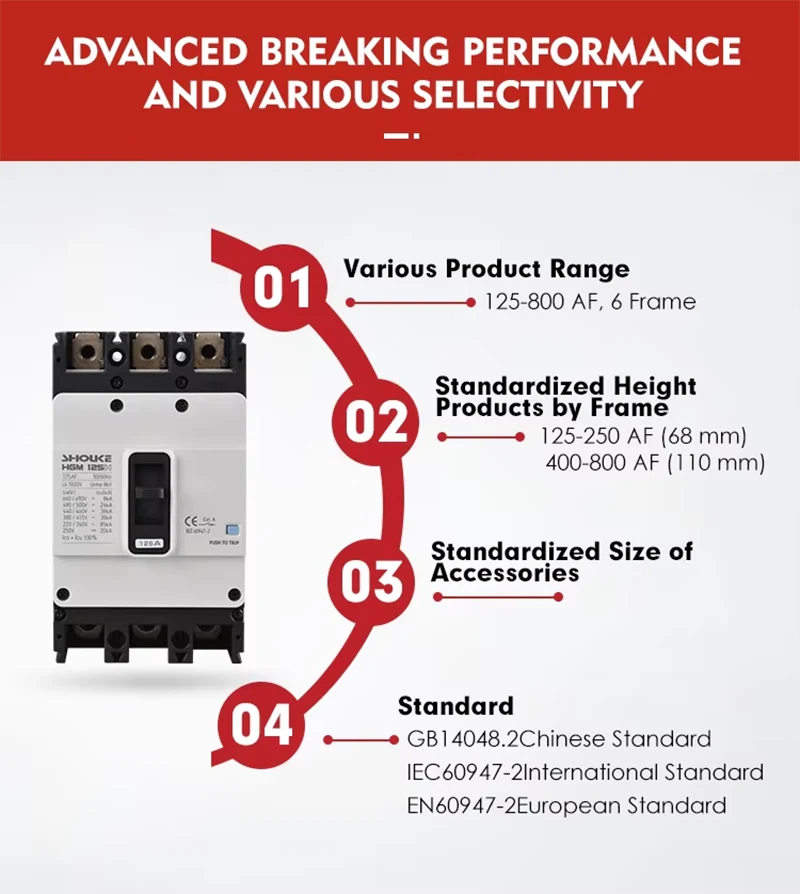

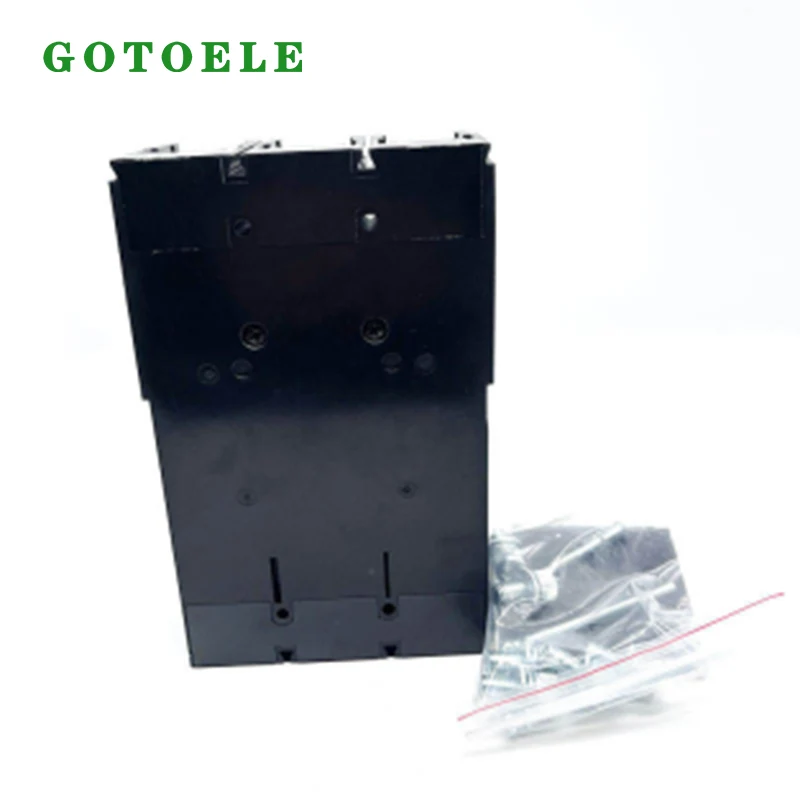

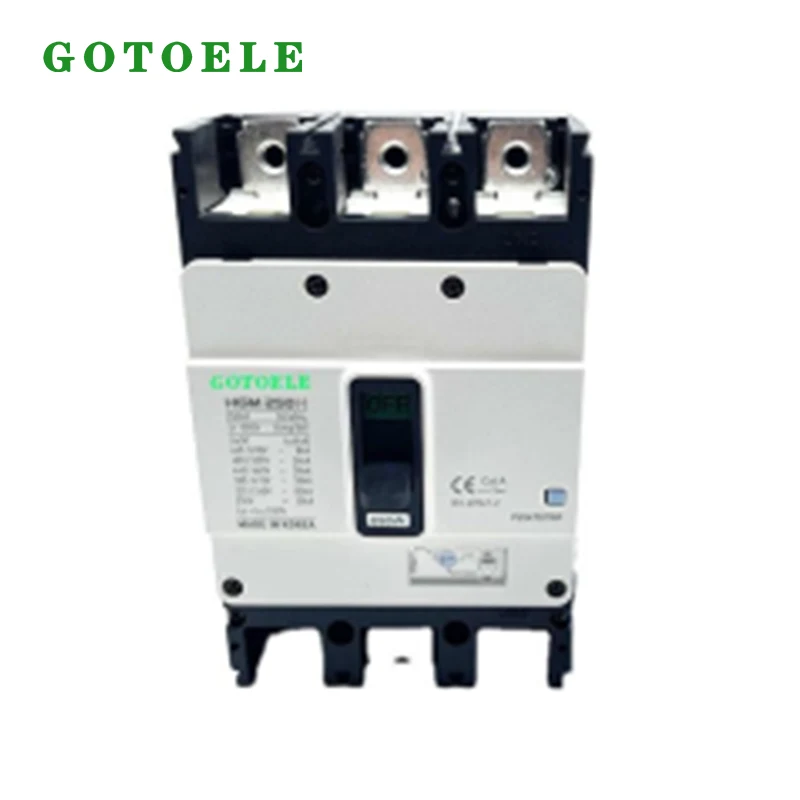

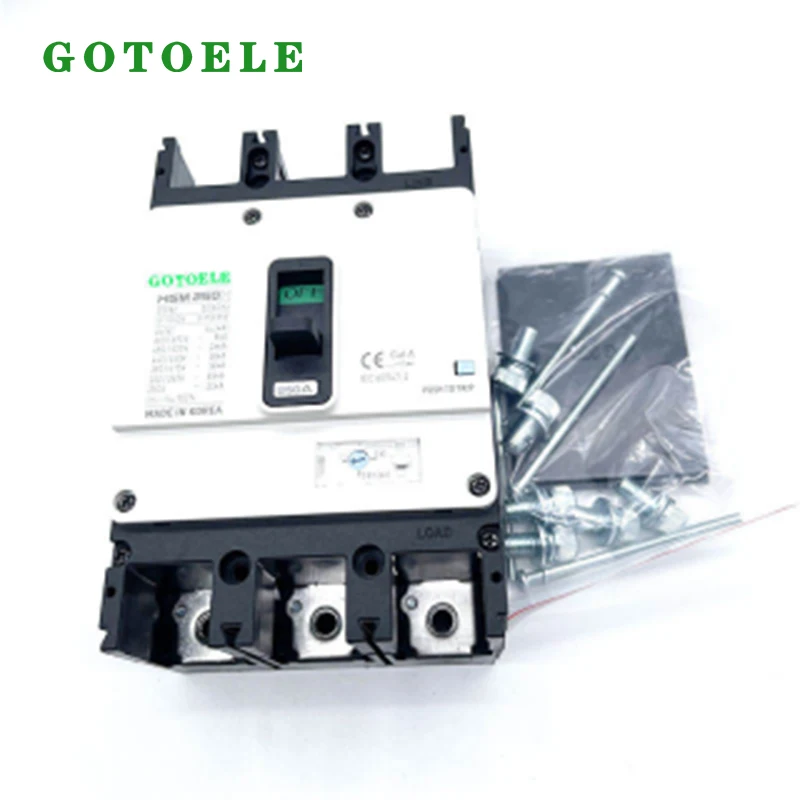

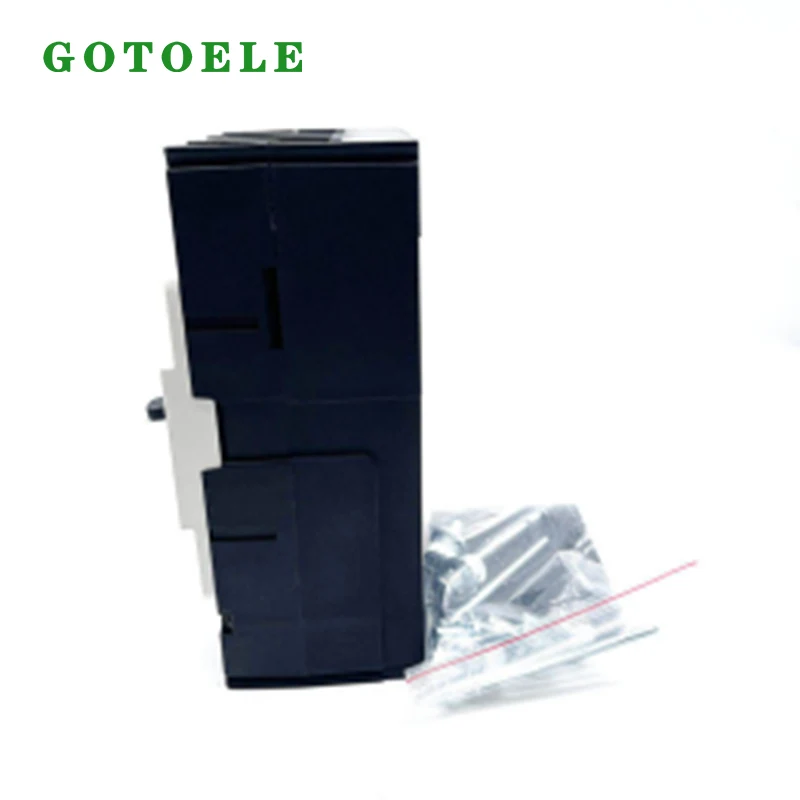

HGM Style Moulded Case Circuit Breaker 3P 100A - 800A

GOTOELE has been deeply involved in the low-voltage electrical industry for over a decade, focusing on core pain points in industrial scenarios. Building upon the mature application of the HGM 3P/250A, GOTOELE has independently developed the HGM Style Moulded Case Circuit Breaker 3P 100A - 800A, expanding the current coverage range and optimizing protection performance to adapt to motor control and power distribution needs under different power and operating conditions, thus contributing to the safe and efficient operation of industrial automation.

Basic Core Parameters

- Product Model: HGM Series Molded Case Circuit Breaker (MCCB)

- Number of Poles: 3P (Three-pole)

- Rated Current: 100A-800A (including 160A, 250A, 400A, 630A, etc., full range)

- Rated Operating Voltage: ≤660V AC, Rated Frequency: 50Hz/60Hz (Globally Compatible)

- Compatible Motor Power: 32KW-560KW Three-phase AC Motors

- Breaking Capacity: High breaking capacity, meeting industrial short-circuit protection requirements

- Protection Rating: IP20 (Upgradeable and customizable)

Five Core Performance Advantages

1. High-frequency durability, adaptable to harsh environments

HGM Style Moulded Case Circuit Breaker 3P 100A - 1. High-Frequency Start/Stop Design: The 800A is specifically designed for high-frequency start/stop operations, utilizing high-strength materials and wear-resistant contacts. It can withstand tens of thousands of start/stop cycles and operates stably in wide temperature ranges from -25℃ to +60℃, as well as dusty and humid conditions, ensuring continuous production.

2. Precise Protection, Safe and Reliable

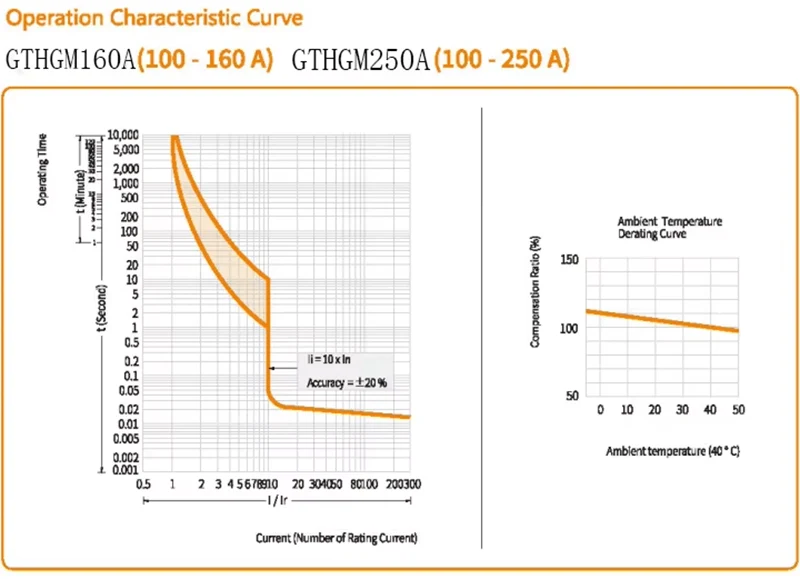

Integrates multiple protections including overload, short circuit, phase loss, and undervoltage, linked to a thermal relay for precise current monitoring, preventing equipment damage and safety accidents. The protection curve is adjustable, eliminating false tripping and failure to trip.

3. Modular Design, High Adaptability

The HGM Style Moulded Case Circuit Breaker 3P 100A - 800A supports auxiliary contacts, delay timers, and other accessory expansions, enabling remote control and equipment interlocking. Its universal interface seamlessly connects to mainstream automation equipment, adapting to the needs of multiple industries.

4. Strict Quality Control, Guaranteed Quality

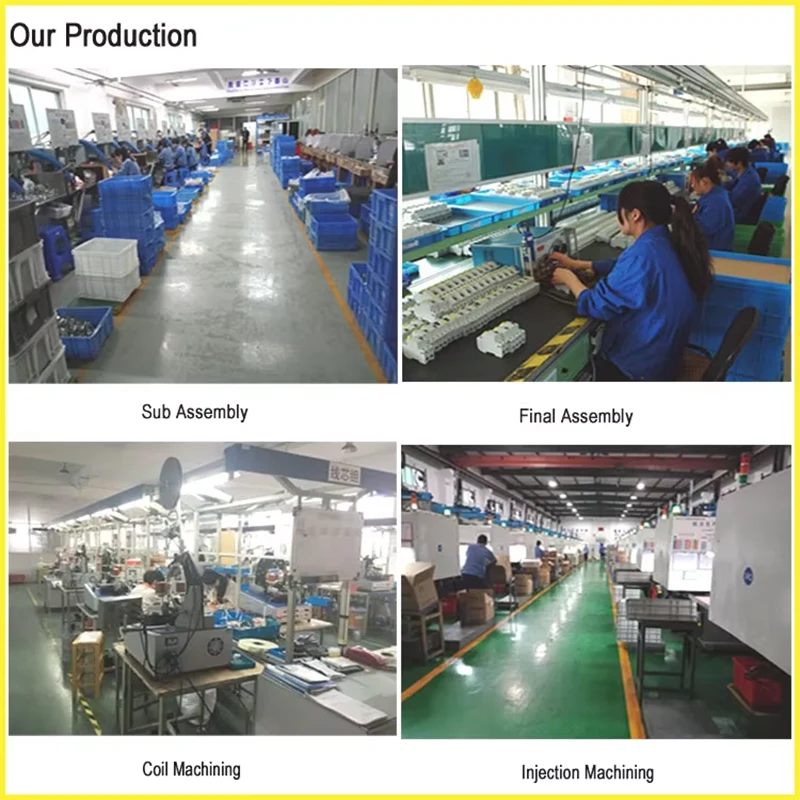

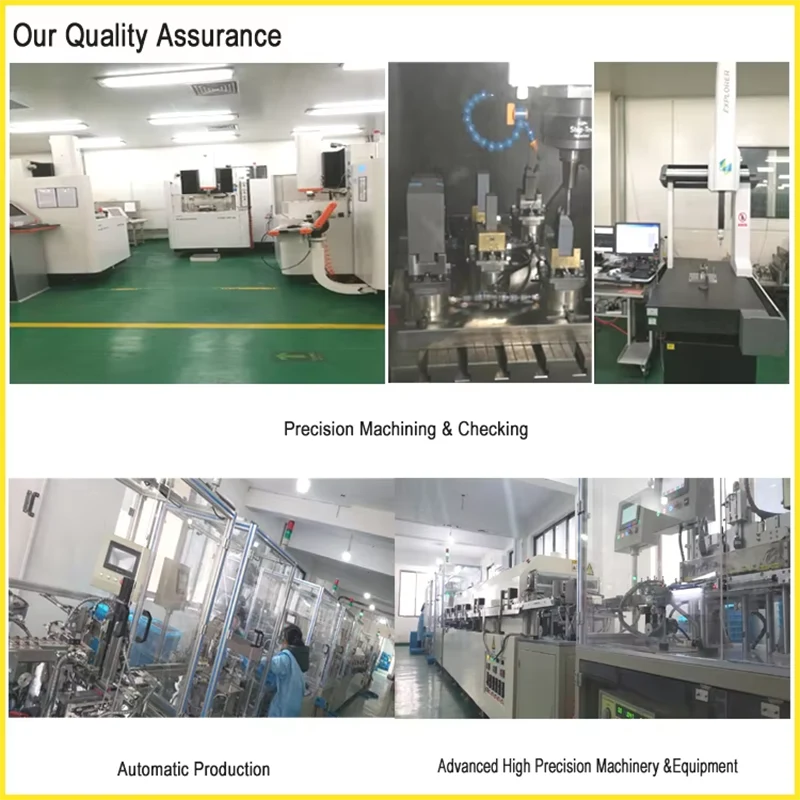

As a professional manufacturer, products are manufactured in our own factory throughout the entire process, and have passed international certifications such as ISO9001 and CE. The failure rate is significantly lower than the industry average.

5. High Cost-Effectiveness, Globally Adaptable

Leveraging China's industrial chain advantages, GOTEELE, as a professional supplier, optimizes costs while ensuring performance, offering prices superior to leading international brands and reducing project procurement costs.

Core Application Scenarios

1. Industrial Manufacturing: Production line motor control, branch circuit protection;

2. Energy Industry: Photovoltaic and energy storage system circuit protection;

3. Commercial Buildings: Central air conditioning, elevator, and other power distribution protection;

4. Infrastructure: Data center, port and mining equipment control;

5. International OEM Projects: Industrial equipment support, cross-border export.

Real-World Application Cases

Case 1: Upgrade of a Southeast Asian Automotive Parts Manufacturing Plant

This factory experienced frequent shutdowns due to aging circuit breaker failures. In 2024, it selected 86 GOTEELE HGM 3P 250A and 400A circuit breakers for stamping and conveyor belt motor control.

Application Results: Stable motor start-stop, short-circuit response ≤10ms, production line continuous operation rate reached 99.9%, monthly losses reduced by over $90,000, and procurement costs reduced by 35%.

Case 2: European PV Energy Storage Power Station Support

A 50MW PV energy storage power station in Europe by 2025 selected 32 HGM 3P 630A units for inverter and grid connection point protection, requiring high breaking capacity, wide temperature range, and remote control.

Application Results: Stable outdoor operation for 12 months without failure in temperatures ranging from -20℃ to +55℃, withstanding current fluctuations and facilitating safe grid connection of the power station.

Packaging and Delivery

The HGM 3P/250A MCCB uses standard export cartons to effectively prevent damage during transportatio. Bulk orders have a delivery time of 10-15 days. OEM brand customization is also supported; logo printing and customized packaging designs can be provided according to customer needs to meet the brand promotion requirements of different markets, providing efficient and convenient delivery services to global customers.

FAQ

Q1: How to select the rated current? What is the relationship between the rated current and the motor power?

A1: Select according to the motor's rated current and starting current. Commonly compatible models: 100A (32KW), 160A (55KW), 200A (75KW), 250A (90KW), 400A (160KW), 630A (315KW), 800A (560KW); for heavy loads/high-frequency start/stop, it is recommended to select one level higher.

Q2: Can the HGM Style Moulded Case Circuit Breaker 3P 100A - 800A be used in high-temperature environments? Will it affect performance?

A2: Standard operating temperature is -25℃ to +60℃. Its high-temperature material design ensures long-term stable operation, with protection curve drift ≤ ±8%. For temperatures exceeding 60℃, a derating of 10%-15% is required for each 10℃ increase in temperature, or customization is necessary.

Q3: What accessory expansions are supported? Will they affect protection performance?

A3: It supports modular expansions such as auxiliary contacts, time delay timers, and remote operating mechanisms. No modifications to the main body are required, and core protection performance is not affected. Interfaces conform to international standards.

Purchase Recommendation

The GOTOELE HGM Style Moulded Case Circuit Breaker 3P 100A - 800A, with its five major advantages including high-frequency durability and precise protection, covers the control needs of motors from 32KW to 560KW. Developed by a professional manufacturer and leveraging the strength of the Chinese industrial chain and its own factory, it is the preferred choice for industrial automation and OEM projects. When selecting a product, it is recommended to determine the parameters based on the load power and operating conditions. As a professional supplier, GOTOELE can provide customized selection, technical support, and global after-sales service
