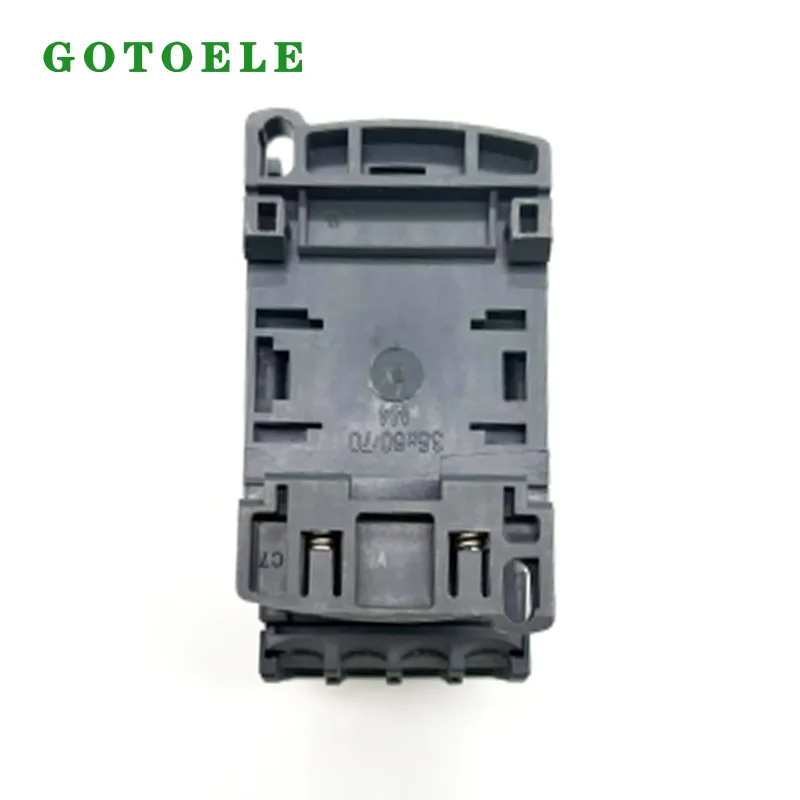

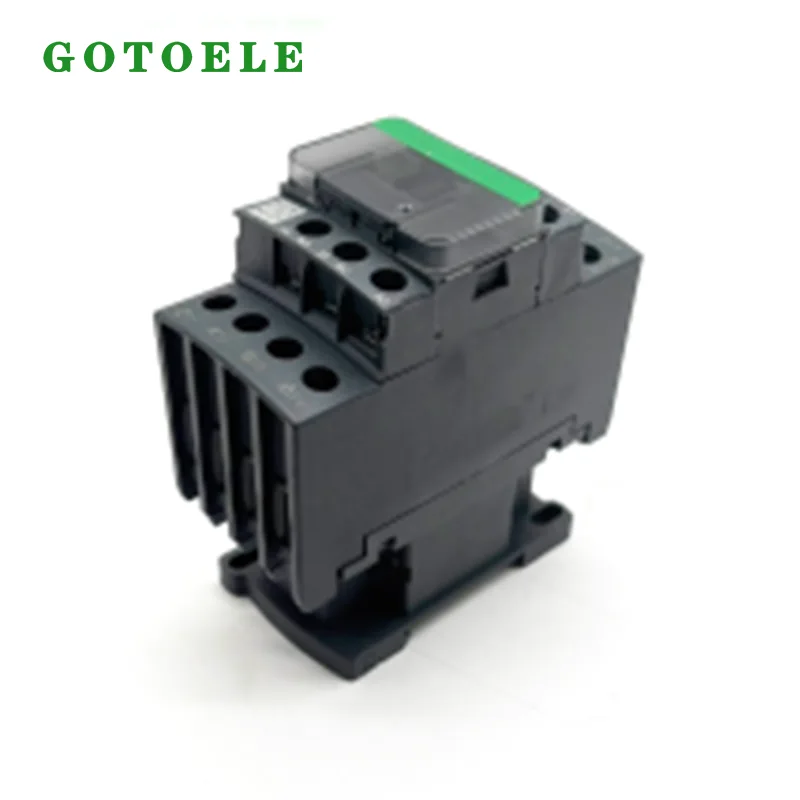

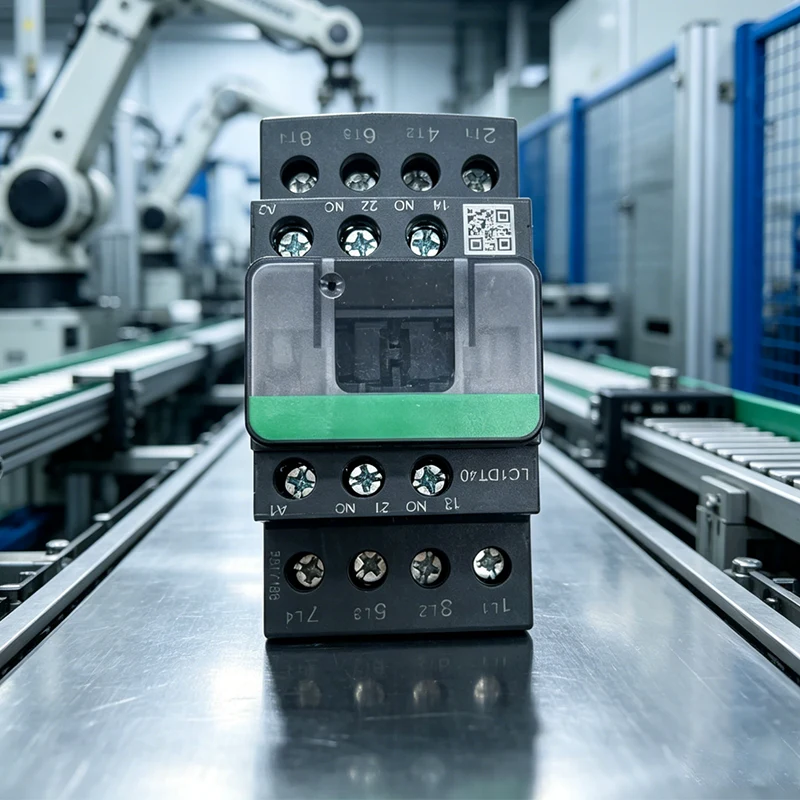

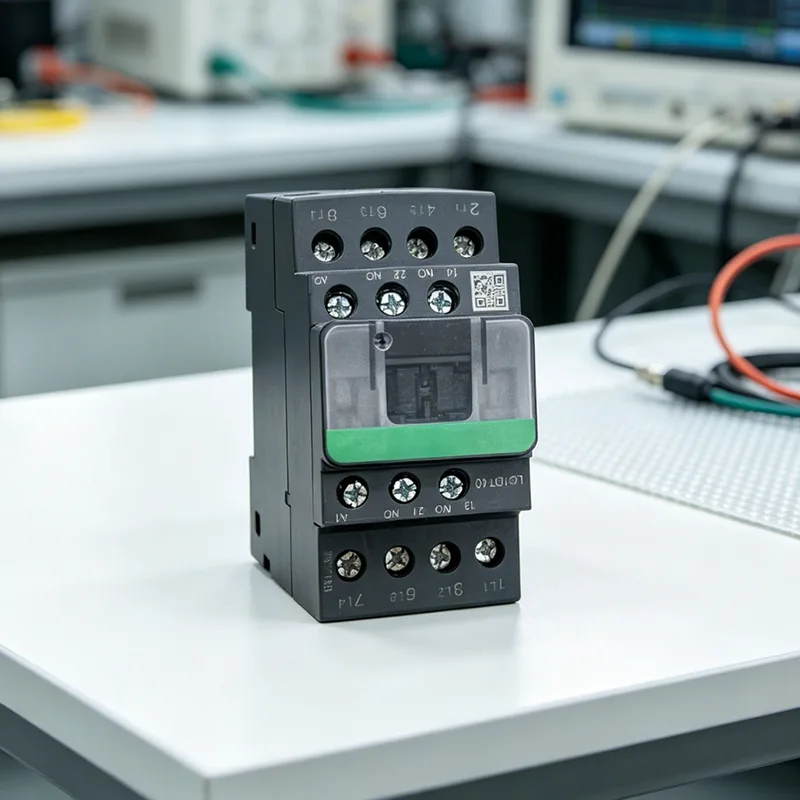

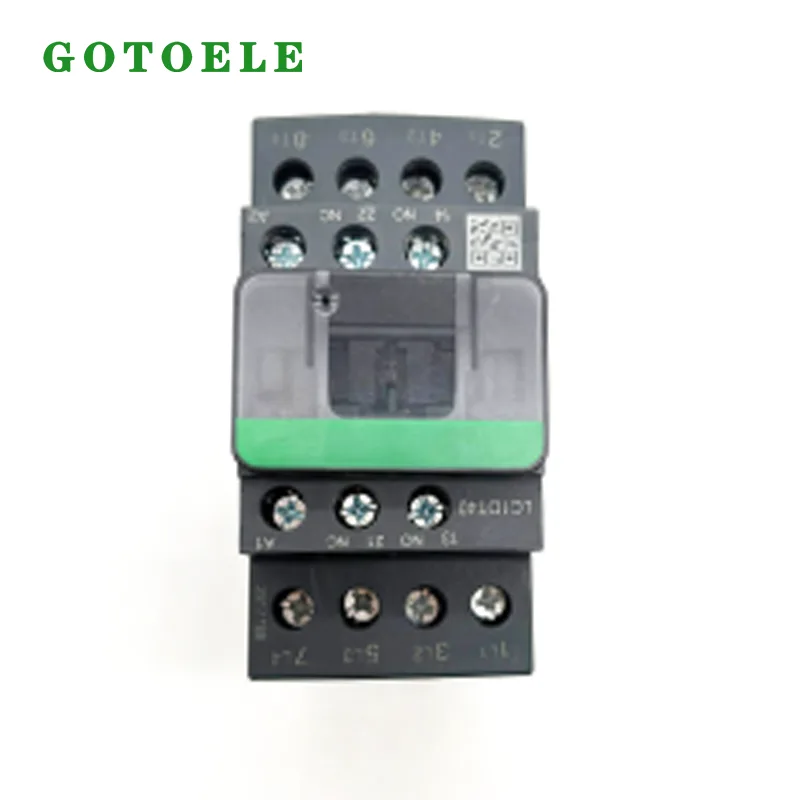

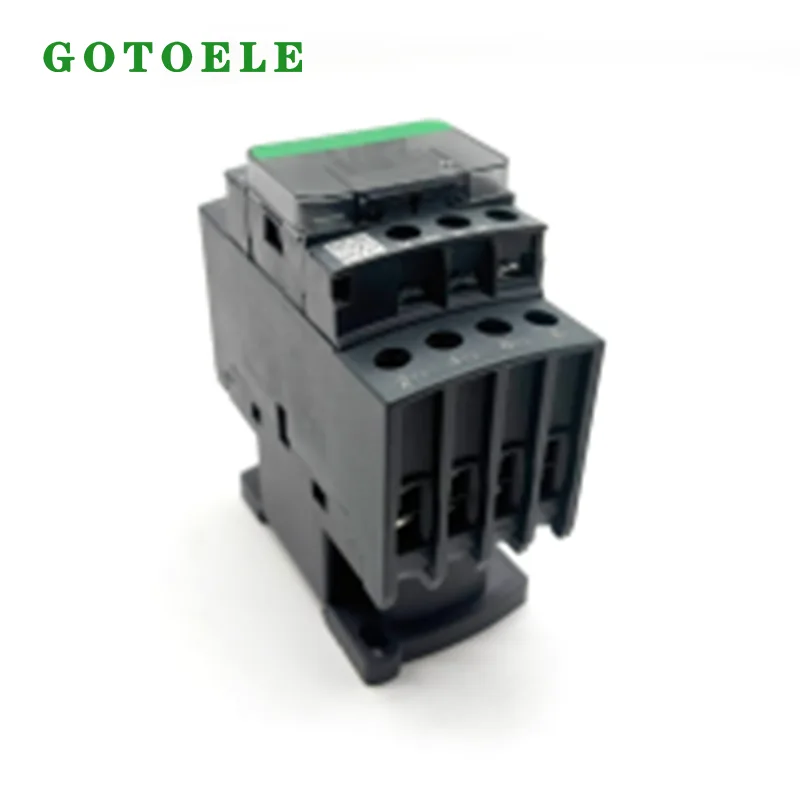

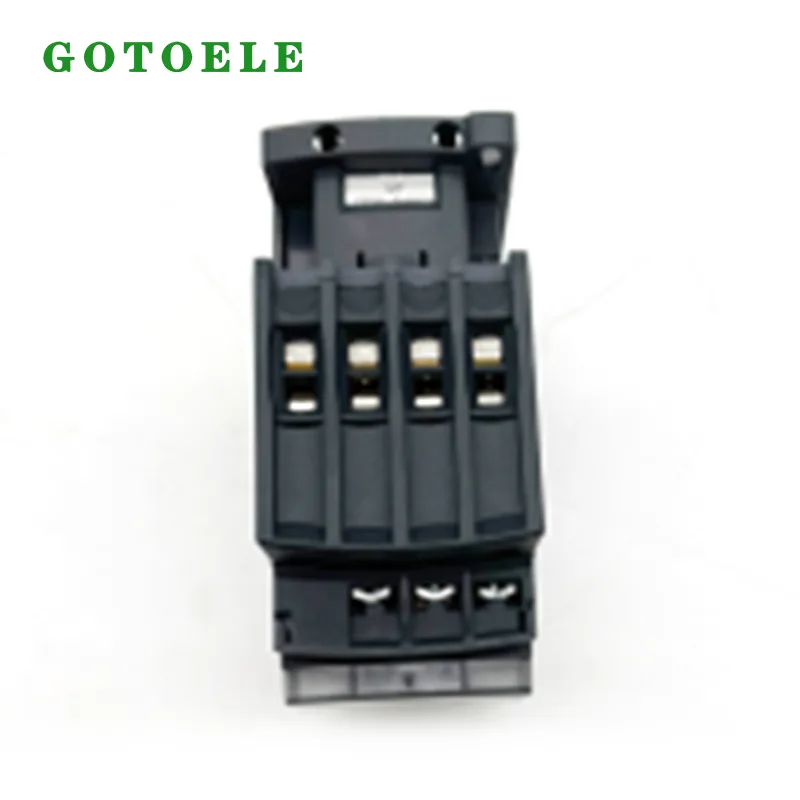

LC1-DT40 25A 4 Pole AC Contactor

The GOTOELE LC1-DT40 25A 4 Pole AC Contactor is a compact low-voltage switching device designed for applications requiring multiple controlled circuits within limited cabinet space.

Compared with conventional 3-pole contactors, the four-pole configuration provides an additional contact path, allowing engineers to control auxiliary circuits, power distribution lines, and electrical loads with greater flexibility. This makes it especially suitable for automation machines, control panels, HVAC equipment, packaging machinery, and customized OEM electrical systems.

The contactor supports AC applications up to 660V and 50/60Hz frequency conditions. Combined with thermal overload relays, auxiliary contacts, and timer modules, it can build complete motor control and electrical switching solutions according to different equipment requirements.

4 Pole Contactor vs Traditional 3 Pole Contactor

In many industrial control systems, 3-pole contactors are mainly selected for standard three-phase motor switching. However, some applications require simultaneous control of additional circuits, neutral switching, or auxiliary power paths.

The LC1-DT40 25A 4 Pole AC Contactor provides four independent normally open contacts, offering several advantages:

· More flexible circuit configuration compared with standard 3-pole models.

· Better suitability for machines requiring separate auxiliary power switching.

· Reduced installation space by integrating multiple switching functions into one component.

· Easier maintenance for OEM control cabinet builders.

For equipment manufacturers designing compact electrical cabinets, this structure helps simplify wiring and improve overall system integration efficiency.

Real Application Experience

Based on GOTOELE's manufacturing experience in low-voltage electrical equipment, the LC1-DT40 series has been supplied to automation equipment manufacturers and electrical distributors in Southeast Asia, Europe, and the Middle East.Application CaseCountry: Thailand

Project Time: March 2025

Customer Type: Industrial automation equipment manufacturer

Installed Quantity: 280 units

Application Environment:

The customer produces automatic packaging machines requiring compact electrical control cabinets. The LC1-DT40 4 pole contactors were installed inside machine control panels to manage motor circuits, auxiliary power switching, and control system operation.

The equipment operates in a workshop environment with:

· Ambient temperature: -5℃ to 40℃

· Working frequency: 50Hz

· Daily operation time: 12-16 hours

· Switching cycles: approximately 60-100 times per day

After continuous operation for more than one year, the contactors maintained stable switching performance. According to customer feedback, the compact four-pole design reduced cabinet wiring complexity and improved assembly efficiency during machine production.

Core Parameters

Product Advantages

1. Four-Pole Structure for More Flexible Electrical Design

The LC1-DT40 adopts a 4NO contact configuration, providing additional switching channels compared with conventional three-pole contactors. This design allows engineers to simplify wiring layouts and integrate more control functions into compact electrical cabinets.

It is particularly suitable for OEM machinery where space utilization and wiring efficiency are important considerations.

2. Stable Switching Performance for Long-Term Operation

The contact system uses high-quality conductive materials to reduce contact resistance and heat generation during operation. Combined with optimized electromagnetic structure, the contactor maintains reliable switching performance under frequent operation conditions.

This helps improve equipment uptime and reduce maintenance frequency for industrial users.

3. Compact Design for Control Cabinet Integration

With a compact structure and standard installation method, the LC1-DT40 can be easily installed in various control cabinets.

Its small footprint helps OEM manufacturers achieve more compact machine designs while maintaining convenient wiring and maintenance access.

4. Cost-Effective Solution for OEM Equipment Manufacturers

Compared with international brands, GOTOELE LC1-DT40 provides similar functional performance with competitive procurement costs.

The product supports OEM customization including:

· Logo printing

· Customized packaging

· Product parameter adjustments

It is suitable for distributors, electrical wholesalers, and machine manufacturers seeking reliable supply solutions.

Production and Quality Control

Yueqing Gongtong Electric Co., Ltd. is a professional manufacturer and exporter specializing in low-voltage electrical products. With more than 14 years of industry experience, the company integrates product design, manufacturing, testing, and international export services.

Located in Liushi, Yueqing, Zhejiang, the company operates a production facility covering more than 1600 square meters, including professional production workshops and a team of experienced employees.

During production, every LC1-DT40 contactor undergoes strict inspection procedures including:

· Coil voltage testing

· Contact resistance inspection

· Mechanical operation testing

· Appearance inspection

With CE and ISO9001 certification systems, GOTOELE ensures each batch meets international quality requirements.

Packaging and Delivery

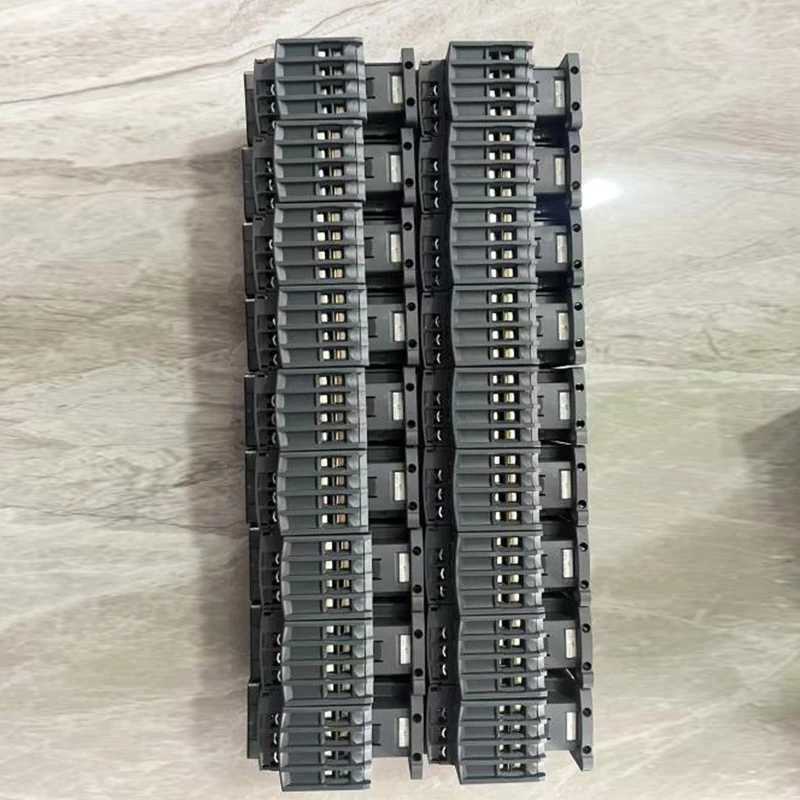

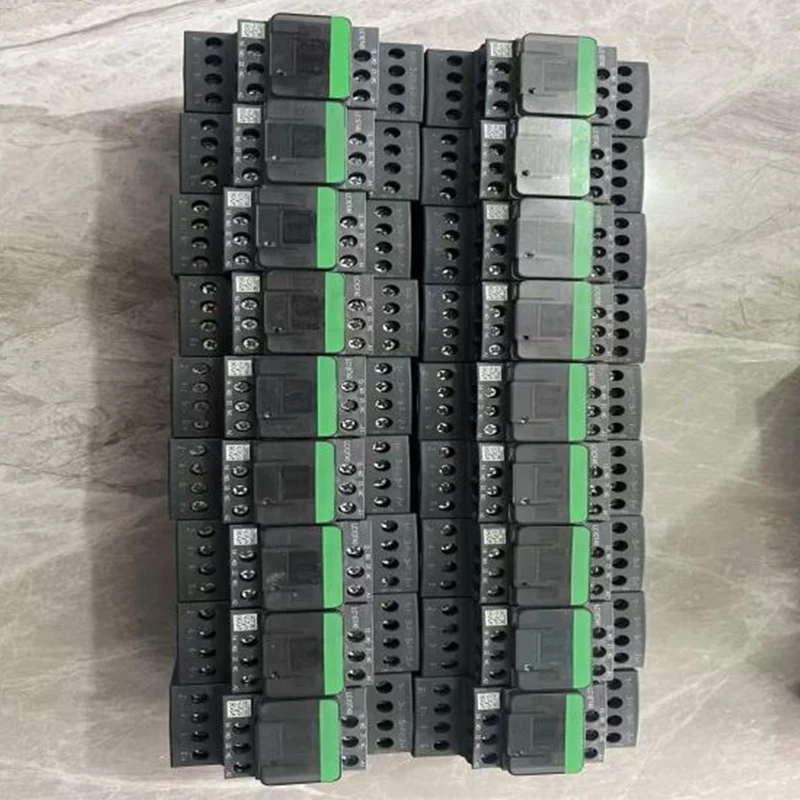

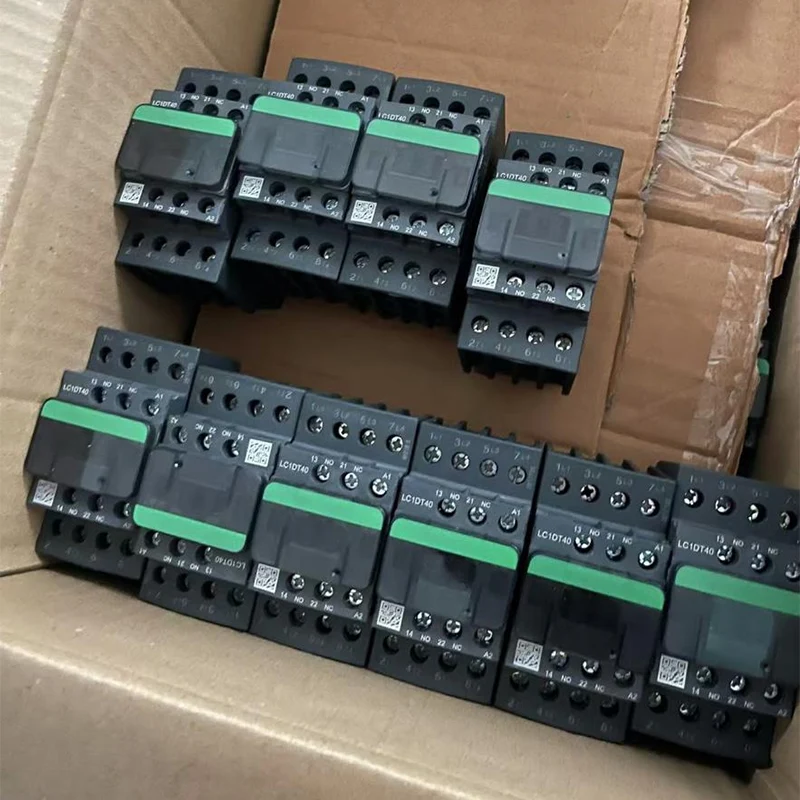

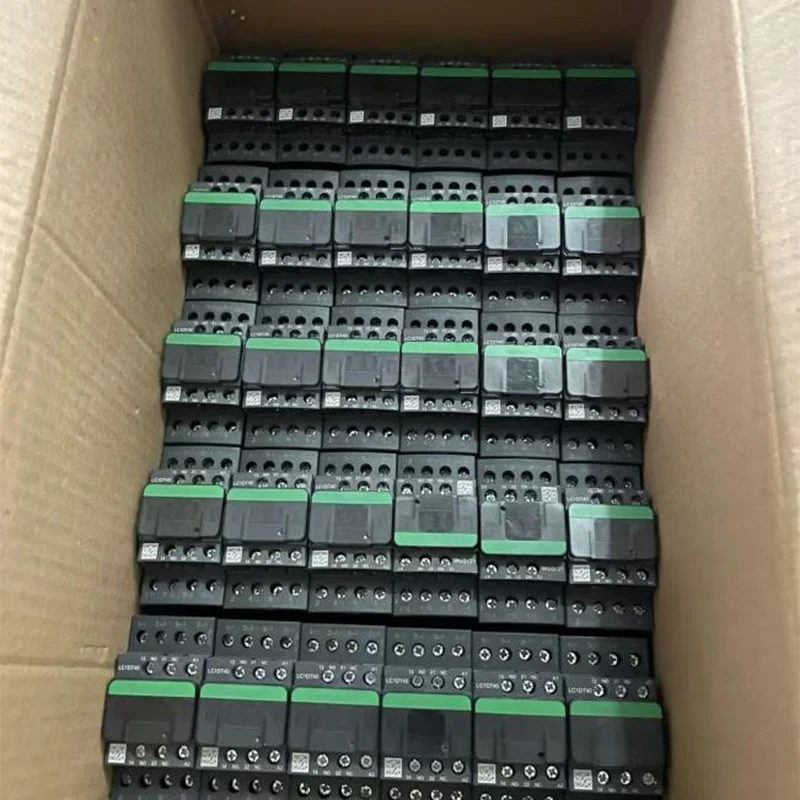

The LC1-DT40 25A 220V50/60HZ 4NO 11KW 15HP AC Contactor is packed using export-standard cartons designed to protect products during international transportation.

For bulk orders, GOTOELE provides stable production capacity and efficient delivery schedules. Customized packaging and OEM branding services are also available according to customer requirements.

FAQ

Q1: What is the difference between a 4 pole contactor and a 3 pole contactor?

A 4 pole contactor provides one additional contact compared with a standard 3 pole contactor. It is suitable for applications requiring additional circuit switching, auxiliary power control, or more flexible wiring configurations.

Q2: What applications are suitable for LC1-DT40?

The LC1-DT40 is widely used in automation equipment, control cabinets, packaging machines, HVAC systems, pumps, fans, and OEM electrical systems where compact and reliable switching is required.

Q3: Does GOTOELE provide OEM customization?

Yes. GOTOELE supports OEM services including customized logo, packaging, and product specifications to meet different market requirements.

Relying on professional manufacturing capability, strict quality management, and years of export experience, GOTOELE provides global customers with reliable LC1-DT40 25A 4 Pole AC Contactors for industrial automation and electrical control applications, supporting worldwide equipment manufacturers with high-quality "Made in China" solutions.
