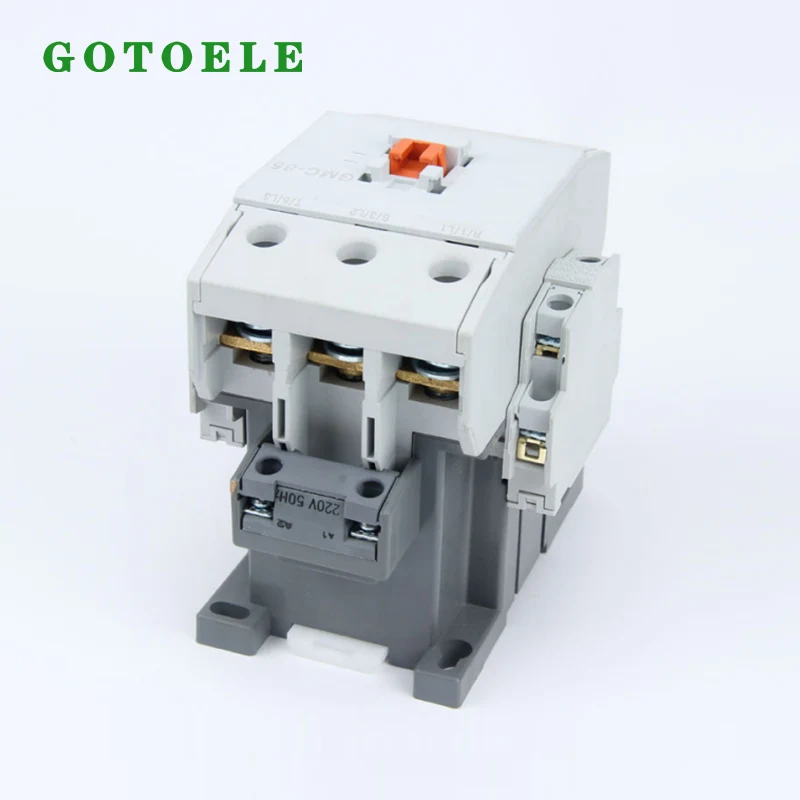

GMC-85 AC Magnetic Contactor 3P 135A 45KW 2NO+2NC for Industrial Motor Control

GMC-85 AC Magnetic Contactor from GOTOELE is a three-phase low-voltage switching component designed for motor control, industrial machinery, pumps, compressors, HVAC equipment, and other applications requiring reliable switching of AC loads. With a 3-pole main contact structure, 135A AC1 thermal current rating, 45kW motor-control capacity at 380–440V, and 2NO+2NC auxiliary contacts, it provides a practical configuration for industrial control cabinets and electrical equipment.

For electrical distributors, panel builders, machine manufacturers, and maintenance teams, selecting a contactor requires more than checking the current rating. Motor power, utilization category, operating voltage, coil voltage, switching frequency, auxiliary contact requirements, installation method, and overload protection should all be considered before purchasing.

What Should Buyers Know About the GMC-85 Configuration?

Three-Pole Main Contact Structure

The three-pole configuration allows the contactor to control a three-phase circuit through a single switching device. This makes it suitable for common industrial motor applications where three-phase power needs to be switched simultaneously.

The main contacts are intended for switching the connected load, while the auxiliary contacts can be incorporated into control, indication, interlocking, and signal circuits.

135A AC1 Thermal Current Rating

The GMC-85 frame is associated with a 135A AC1 thermal current rating. However, buyers should not interpret the AC1 value as the allowable motor current under every operating condition. Motor applications normally require selection according to the applicable utilization category and actual motor characteristics.

For motor control, the rated operational current and power should therefore be checked against the intended supply voltage and application duty before final selection.

45kW Motor Control Capacity

At 380–440V, the GMC-85 configuration is rated for 45kW under AC3 motor-control conditions. This makes the model suitable for a range of medium-power three-phase motor applications when the electrical characteristics match the system requirements.

Core Parameters

How Does an AC Magnetic Contactor Work?

Electromagnetic Switching Principle

An AC magnetic contactor uses an electromagnetic coil to control the movement of its internal contact mechanism. When the control circuit energizes the coil, electromagnetic force moves the contact assembly and changes the state of the main contacts.

When the coil is de-energized, the mechanism returns to its normal position. This allows a low-power control circuit to manage a higher-power electrical load without requiring the operator or controller to directly switch the motor circuit.

Separating Power and Control Functions

One of the main practical advantages of a contactor is the separation between the main power circuit and the control circuit. The main contacts handle the connected load, while the coil and auxiliary contacts interact with the control system.

This structure is widely used in automated machinery because the motor can be controlled through pushbuttons, PLC outputs, sensors, relays, or other control devices.

Why the 2NO+2NC Auxiliary Contacts Matter

Normally Open Contacts

The two normally open auxiliary contacts can be used for control logic, running-status feedback, self-holding circuits, or connection to external indication devices, depending on the system design.

This gives equipment manufacturers additional flexibility when integrating the contactor into a larger control cabinet.

Normally Closed Contacts

The two normally closed auxiliary contacts can be used in interlocking, signaling, and control circuits. They can help coordinate the contactor with other switching components or control devices.

Supporting Control Circuit Design

Having both normally open and normally closed auxiliary contacts in the same configuration can reduce the need for additional auxiliary switching components in some control designs.

The actual contact arrangement and electrical utilization should always be checked against the control circuit diagram before installation.

Typical Industrial Applications

Industrial Motor Control

The primary application of the GMC-85 is switching and controlling compatible three-phase motors. It can be incorporated into motor starter assemblies and control panels where the rated electrical conditions correspond to the application.

Pumps and Water Treatment Equipment

Pumps often require automatic start-stop control based on pressure, level, flow, or process signals. A contactor can serve as the switching interface between the control circuit and the pump motor.

Compressors and HVAC Systems

Industrial compressors, ventilation systems, air-conditioning equipment, and other motor-driven systems can use contactors to control motors according to the requirements of the equipment's electrical control system.

Production Machinery

Manufacturing equipment frequently contains multiple motors, conveyors, fans, pumps, and other electrical loads. Contactors can be incorporated into control cabinets to provide centralized switching and automated operation.

Key Selection Factors Before Purchasing

Check Motor Power and Current

Motor power alone is not sufficient for contactor selection. Buyers should confirm the motor's rated current, supply voltage, frequency, starting characteristics, operating duty, and utilization category.

The contactor should be selected based on the actual electrical load rather than simply matching the product name to the motor's nominal power.

Confirm Coil Voltage

The contactor coil voltage must match the control circuit. Common control voltages can vary considerably between different machines and regions.

Before ordering, buyers should specify the required coil voltage and frequency to avoid compatibility problems during installation.

Consider Switching Frequency

Applications with frequent motor starting and stopping place greater demands on the contactor than applications with relatively infrequent switching.

The expected operating frequency should therefore be considered when selecting the contactor and assessing its suitability for the intended application.

Coordinate Overload Protection

A contactor primarily provides switching control and should not be treated as a replacement for a dedicated motor overload protection device. For motor starter applications, an appropriate thermal overload relay or electronic motor protection device should be selected according to the motor and system requirements.

Installation Considerations

Verify Electrical Ratings

Before installation, technicians should confirm the contactor model, coil voltage, main circuit voltage, rated current, motor power, auxiliary contact configuration, and wiring diagram.

Use Appropriate Conductors

Power conductors, terminal connections, and protective devices should be selected according to the actual current and applicable electrical installation standards.

Loose or improperly sized connections can increase contact resistance and heat generation, potentially affecting equipment reliability.

Provide Suitable Protection

The contactor should be integrated with appropriate short-circuit and overload protection. The protection configuration should be designed according to the motor characteristics, installation environment, and applicable local electrical regulations.

Check the Installation Environment

Temperature, humidity, dust, vibration, enclosure design, and ventilation can affect the operating conditions of low-voltage electrical components. The contactor should be installed in an environment within its specified operating limits.

Maintenance and Inspection

Inspect Main Contacts

For equipment operating frequently, maintenance personnel should periodically inspect the condition of the main contacts. Excessive pitting, burning, discoloration, or abnormal wear can indicate electrical stress or unsuitable operating conditions.

Check Auxiliary Contacts

Auxiliary contacts should be checked when control circuits experience intermittent signals, unexpected switching behavior, or feedback errors.

Inspect Terminal Connections

Electrical terminals should remain securely fastened. Maintenance personnel should follow the manufacturer's recommended tightening requirements and applicable electrical maintenance procedures.

Monitor Abnormal Noise

Unusual buzzing, vibration, or unstable contactor operation may indicate coil, mechanical, voltage, or installation-related problems. Abnormal conditions should be investigated before continued operation.

Quality Considerations for B2B Buyers

Production Consistency

For distributors and OEM customers, consistency between batches is important because contactors are often integrated into standardized control panels and equipment designs.

GOTOELE states that its production process includes quality control from raw material inspection through manufacturing, testing, packaging, and delivery.

Testing Before Shipment

Electrical products should undergo appropriate inspection and testing before shipment. Buyers purchasing in bulk should confirm the supplier's inspection procedures and documentation requirements before placing an order.

Certification Requirements

GOTOELE identifies CE and ISO9001 among its quality and certification credentials. Customers should request the applicable certificate and technical documentation for the exact product configuration required for their market.

GOTOELE Manufacturing and Supply Capability

Low-Voltage Electrical Product Manufacturer

GOTOELE, operated by Yueqing Gongtong Electric Co., Ltd., specializes in low-voltage electrical products including AC contactors, thermal overload relays, molded case circuit breakers, starters, MCBs, and control components.

The company integrates R&D, product design, manufacturing, testing, and export services to support distributors, equipment manufacturers, and industrial customers.

Support for OEM and Customized Orders

GOTOELE provides OEM and customized product support covering technical parameters, product configurations, packaging, and branding requirements. This can be useful for electrical distributors and equipment manufacturers that require consistent specifications across multiple projects.

Bulk Supply Capability

For international buyers, stable production and supply capacity are important when contactors are used as standard components across multiple equipment models. GOTOELE reports an annual production capacity of approximately 8 million pieces across its low-voltage electrical product range.

Buyer Checklist

Frequently Asked Questions

What is the GMC-85 AC Magnetic Contactor used for?

It is designed for switching and controlling compatible three-phase AC loads, particularly industrial motors and motor-driven equipment such as pumps, compressors, HVAC systems, conveyors, and production machinery.

What does 135A mean for this contactor?

The 135A value refers to the AC1 thermal current rating associated with the GMC-85 frame. Motor applications should be selected according to the applicable utilization category, motor current, voltage, and operating conditions.

Can the GMC-85 control a 45kW motor?

The GMC-85 is rated for 45kW at 380–440V under AC3 conditions according to the specified configuration. The actual motor application should still be checked against rated current, starting conditions, switching frequency, and applicable standards.

What does 2NO+2NC mean?

It indicates two normally open and two normally closed auxiliary contacts. These contacts can be used for control logic, status feedback, interlocking, and signaling circuits.

Does the contactor include overload protection?

A contactor provides switching control and should normally be coordinated with an appropriate overload protection device for motor applications. The required protection configuration depends on the motor and electrical system.

Can GOTOELE provide OEM services?

Yes. GOTOELE provides OEM and customized support for distributors, equipment manufacturers, and industrial customers, including product specifications, configurations, packaging, and branding requirements.

Final Considerations

GMC-85 AC Magnetic Contactor provides a three-phase switching solution for industrial motor control and other compatible low-voltage applications. Its 3P structure, 135A AC1 thermal current rating, 45kW AC3 rating at 380–440V, and 2NO+2NC auxiliary contacts make it suitable for control systems that require both main-circuit switching and auxiliary control functions.

For electrical distributors, panel builders, OEM equipment manufacturers, and maintenance teams, the correct selection should be based on motor current, voltage, utilization category, coil voltage, switching frequency, protection configuration, installation conditions, and required certification.

With low-voltage electrical manufacturing experience, OEM support, quality management, and international supply capabilities, GOTOELE can support customers looking for contactor configurations for industrial automation, motor control, machinery, HVAC, pumps, and other electrical equipment applications.
