ST3P A-B Electronic Power On Delay Timer Relay

The GOTOELE ST3P A-B Electronic Power On Delay Timer Relay is designed to solve timing coordination problems in electrical control systems. Unlike standard relays that switch immediately after energization, this timer relay introduces a preset waiting period before activating the output contacts.

During operation, the internal electronic timing circuit begins counting after the coil receives power. Once the set delay time is reached, the relay automatically changes the contact state to trigger the next control action.

This function allows different components within the same machine to operate according to a planned sequence, improving equipment coordination and reducing unnecessary simultaneous startup impact.

Designed for Equipment That Requires Delayed Actions

Many industrial machines require controlled time intervals between different operations. The ST3P A-B provides a simple and effective solution without adding complex control systems.

Typical applications include:

· Motor starting circuits where auxiliary equipment needs to start after the main motor reaches stable operation;

· Conveyor systems requiring sequential activation of different drive sections;

· Air compressors and pumps requiring delayed restart after power recovery;

· Ventilation systems requiring fan operation after equipment shutdown;

· Packaging and assembly machines requiring precise operation intervals.

By adding adjustable delay control, the timer relay improves the working sequence and helps reduce electrical and mechanical stress during equipment operation.

Simple Alternative for Basic Automation Timing Control

For many small and medium automation applications, using a PLC only for simple delay functions can increase system cost and programming complexity.

The ST3P A-B provides a dedicated timing solution that allows engineers to add delay logic directly into electrical circuits.

Compared with PLC-based control:

· No programming software is required;

· Installation is faster;

· Troubleshooting is easier;

· The control system structure remains simple.

It is especially suitable for independent machines and control cabinets where only basic timing functions are required.

Convenient Installation and Field Adjustment

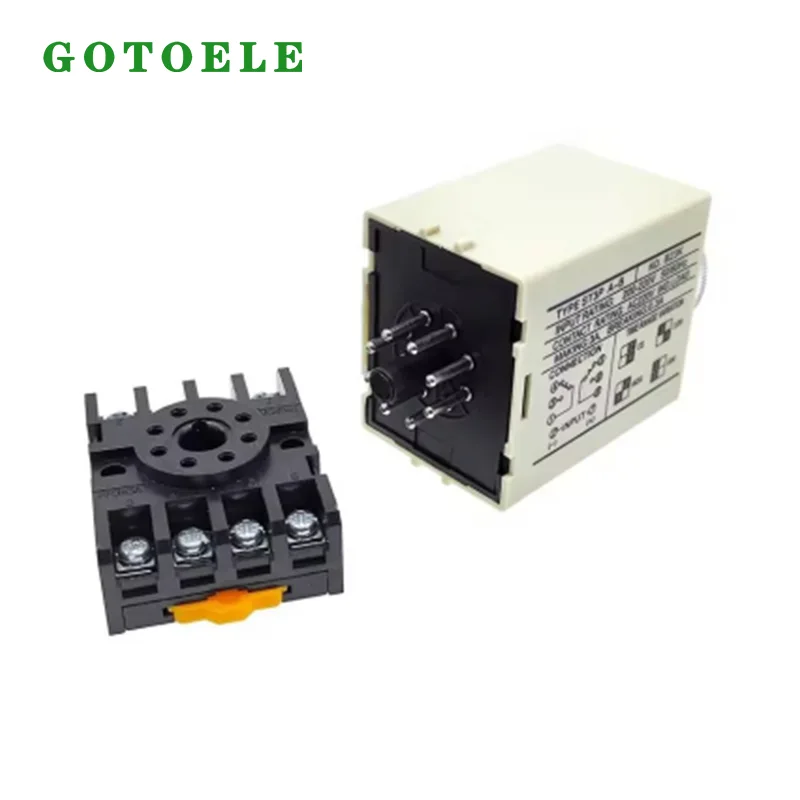

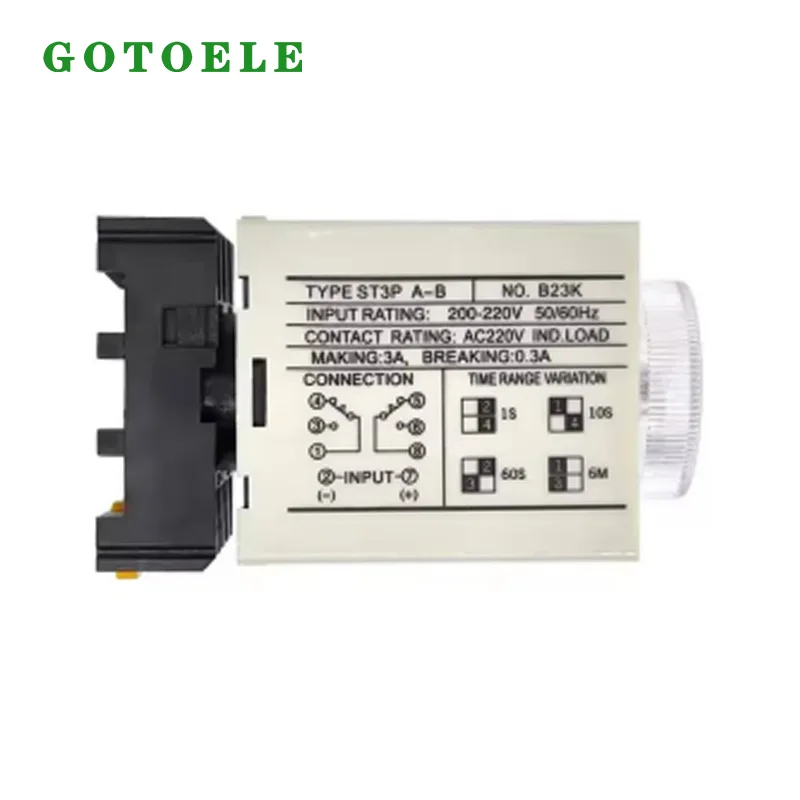

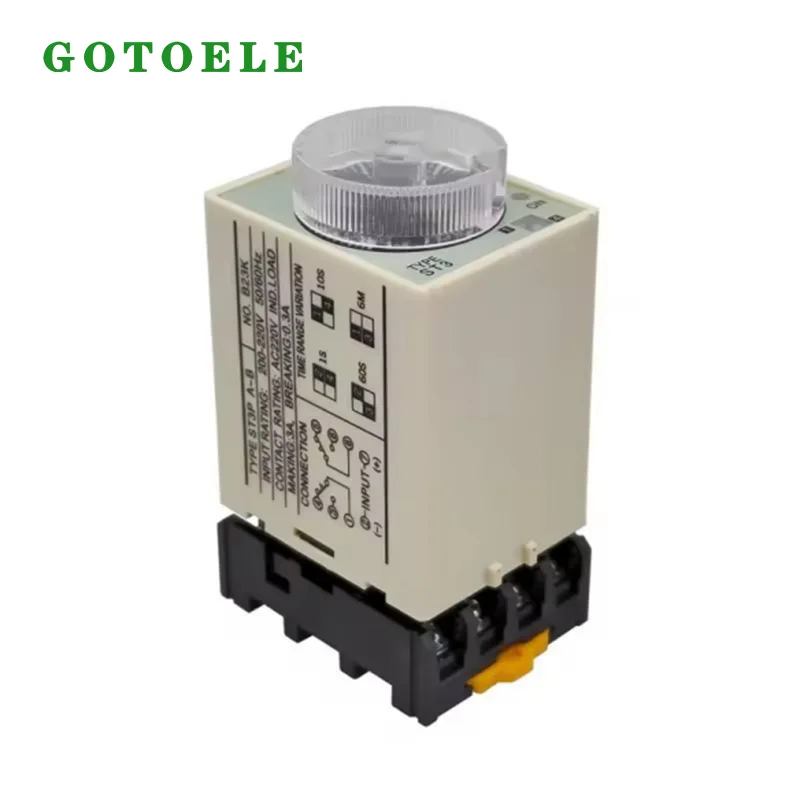

The ST3P A-B adopts an 8-pin plug-in structure, allowing quick connection with the matching socket base. When replacement is required, technicians can remove and install the timer module without changing the complete wiring system.

The DIN rail mounting design allows integration into:

· Industrial electrical cabinets;

· Automation control panels;

· Machine distribution boxes;

· Building control systems.

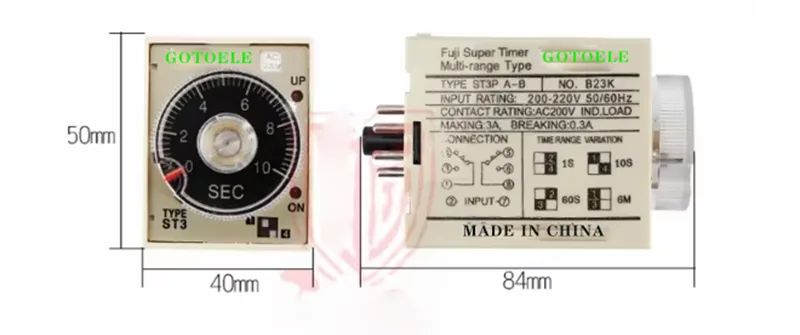

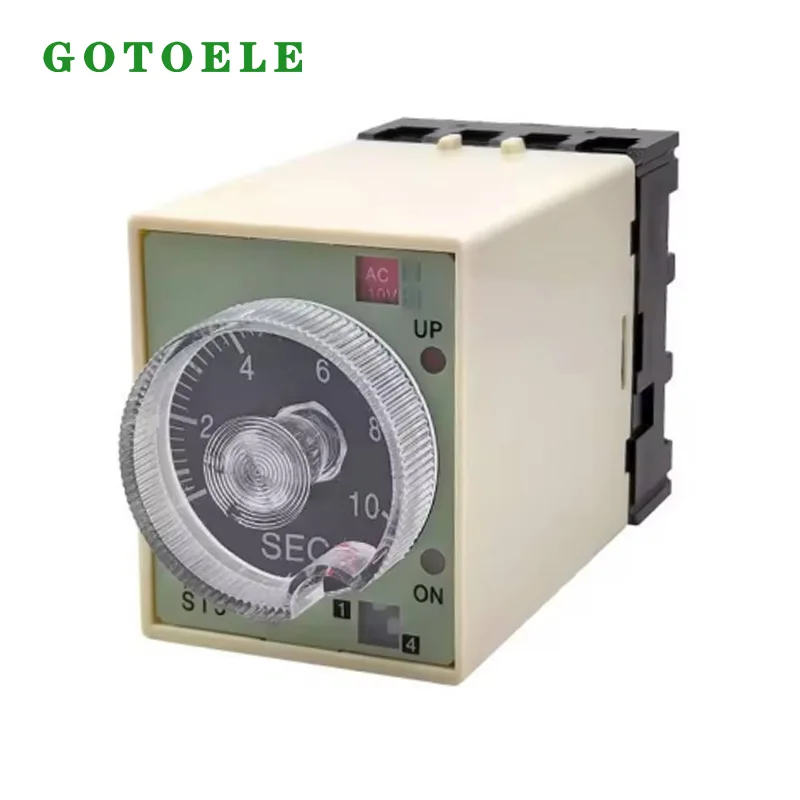

The front adjustment knob enables operators to modify the delay time directly according to actual working requirements.

Time range

Real-world Application Experience

In an automated packaging production line project, GOTOELE ST3P A-B Electronic Power On Delay Timer Relay was installed in the control cabinet to manage the operating sequence between the conveyor motor and the packaging mechanism.

The timer was configured to introduce a controlled delay between equipment actions, preventing material accumulation caused by inconsistent startup timing.

After continuous operation in a production environment, the system maintained stable switching performance and reduced adjustment time during equipment commissioning. The customer benefited from a simpler control structure compared with previous PLC-based timing solutions.

Core Parameters

Core Advantages

1. Stable Electronic Timing Instead of Mechanical Delay Control

The electronic timing circuit provides consistent delay performance and avoids timing deviation caused by mechanical wear found in traditional pneumatic or mechanical timer devices.

2. Flexible Delay Adjustment for Different Equipment Requirements

The adjustable time setting allows users to configure suitable delay parameters according to different machine operating sequences, improving compatibility with various automation applications.

3. Plug-In Structure Reduces Maintenance Time

The removable module design allows quick replacement during equipment maintenance. Technicians can complete replacement operations efficiently without extensive rewiring.

4. Economical Solution for Simple Automation Systems

The ST3P A-B provides essential timing functions at a lower system cost, making it suitable for customers who need reliable delay control without investing in complicated automation controllers.

Production and Quality Control

GOTOELE manufactures industrial control components under standardized production procedures in Zhejiang, China.

Each ST3P A-B Electronic Power On Delay Timer Relay is tested before delivery, including coil voltage inspection, contact switching verification, timing accuracy testing and insulation performance checks.

Through strict quality management and production control, GOTOELE ensures stable operation for automation equipment manufacturers and industrial users worldwide.

Packaging and Delivery

The ST3P A-B Electronic Power On Delay Timer Relay is packed with protective export packaging to ensure safe transportation.

GOTOELE supports bulk production, OEM labeling and customized packaging solutions according to different customer requirements, providing efficient supply support for global industrial projects.

FAQ

Q1: What is the difference between a timer relay and a normal relay?

A normal relay changes contacts immediately after energization, while a timer relay introduces a preset delay before switching, allowing equipment to operate according to a controlled sequence.

Q2: Can the ST3P A-B be used in motor starting applications?

Yes. It is commonly used in motor control circuits where delayed switching is required, such as star-delta starting systems and auxiliary equipment control.

Q3: Does the timer require PLC programming?

No. The ST3P A-B uses a simple adjustable timing structure and can provide delay control without PLC programming.

Q4: Does GOTOELE support OEM customization?

Yes. GOTOELE provides OEM services including product labeling, packaging customization and technical parameter adjustments.
