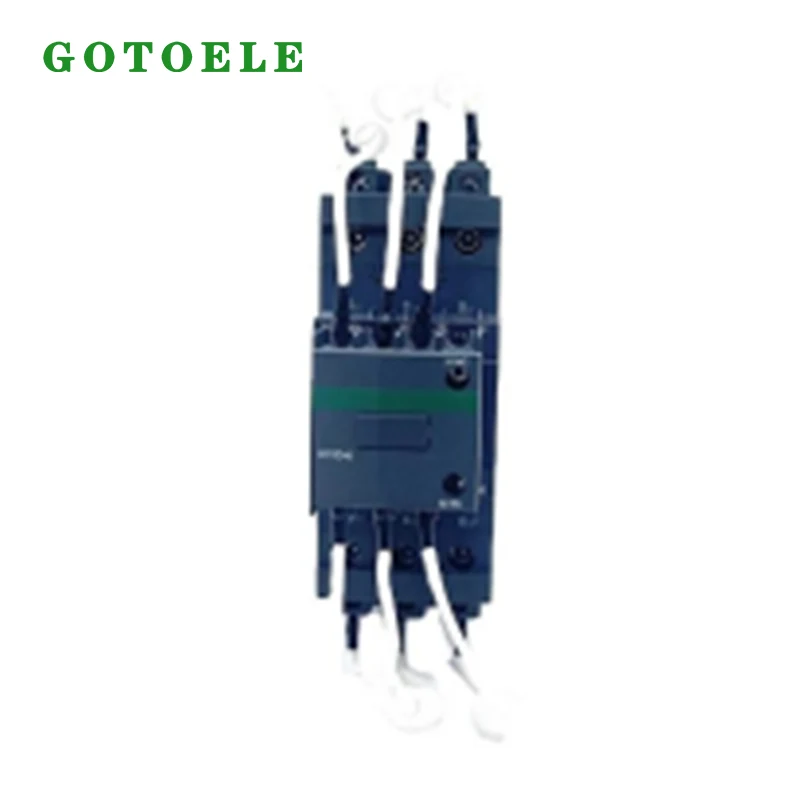

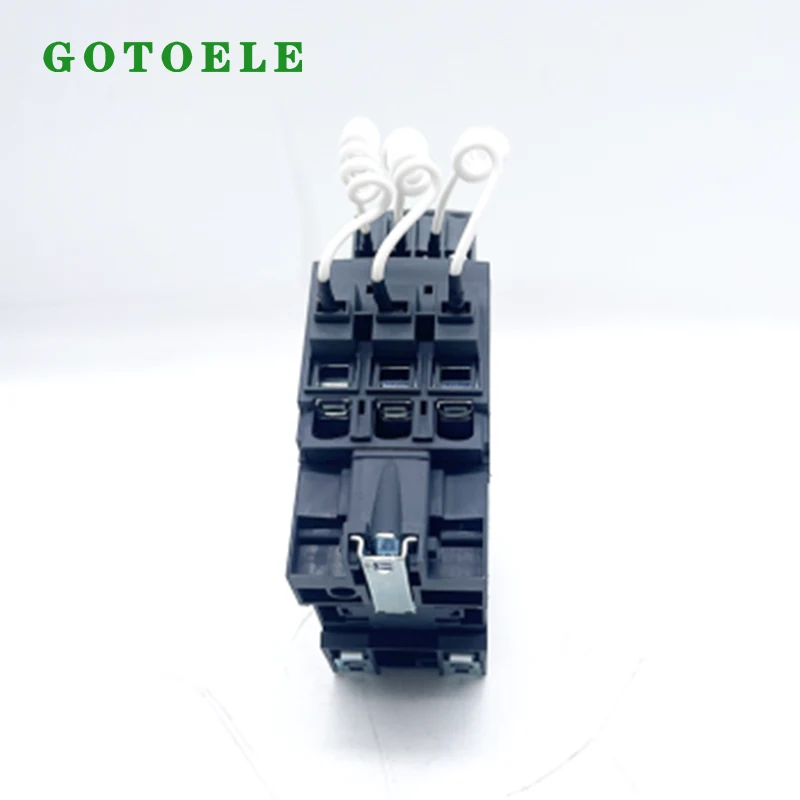

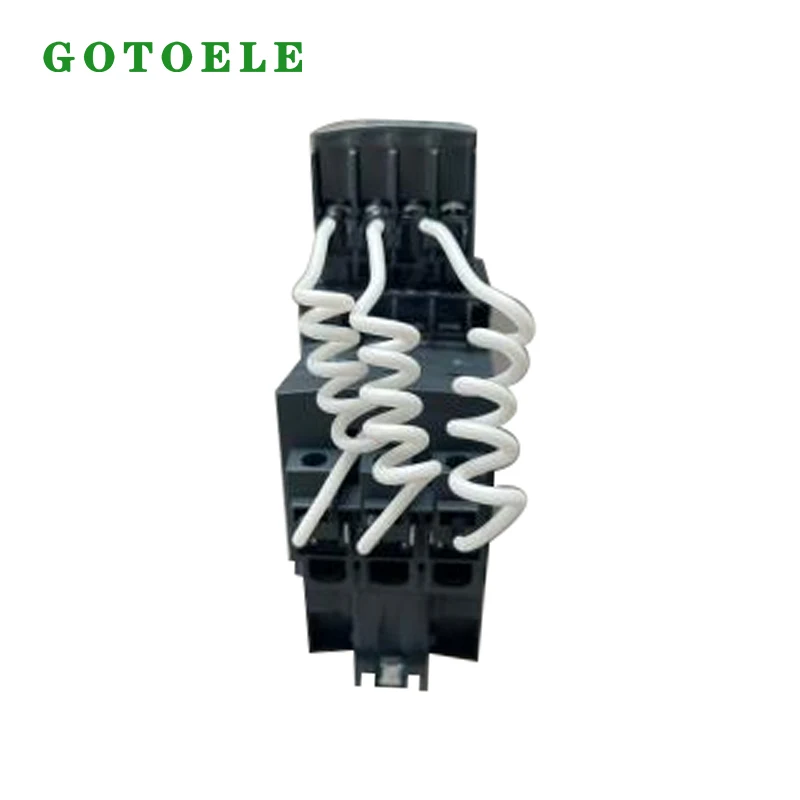

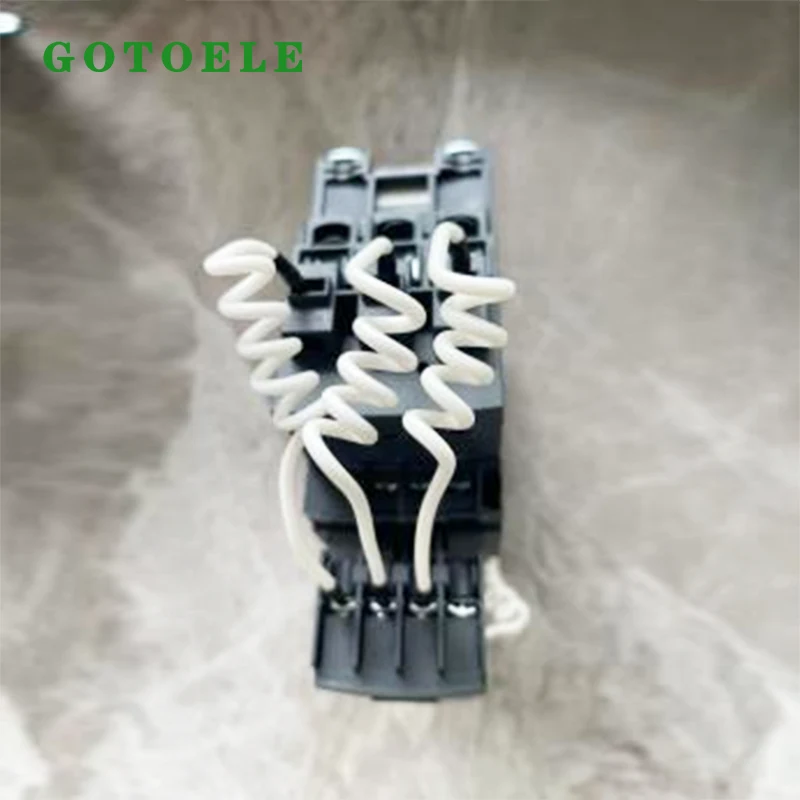

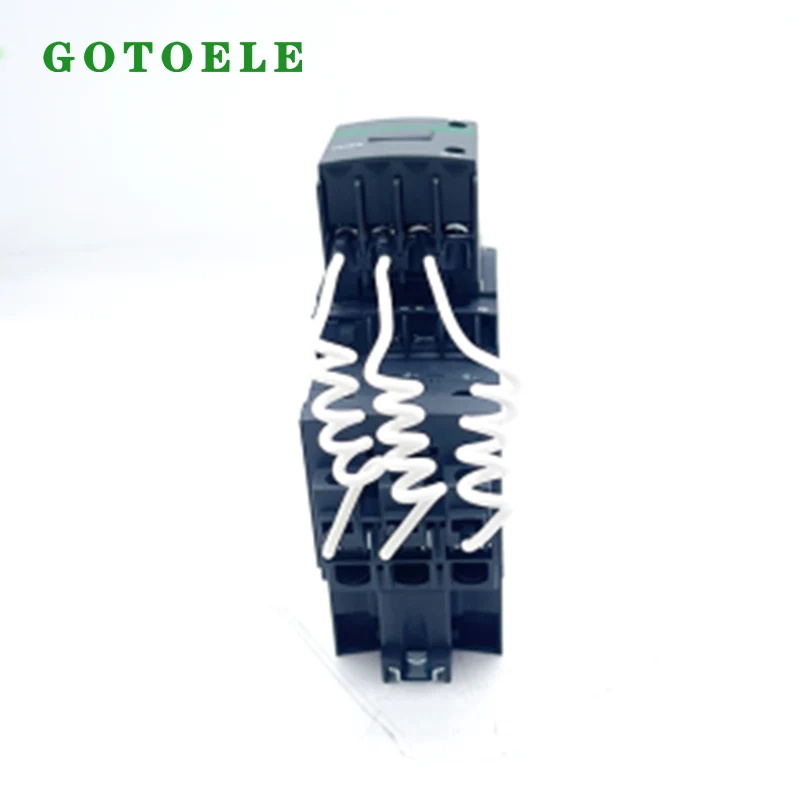

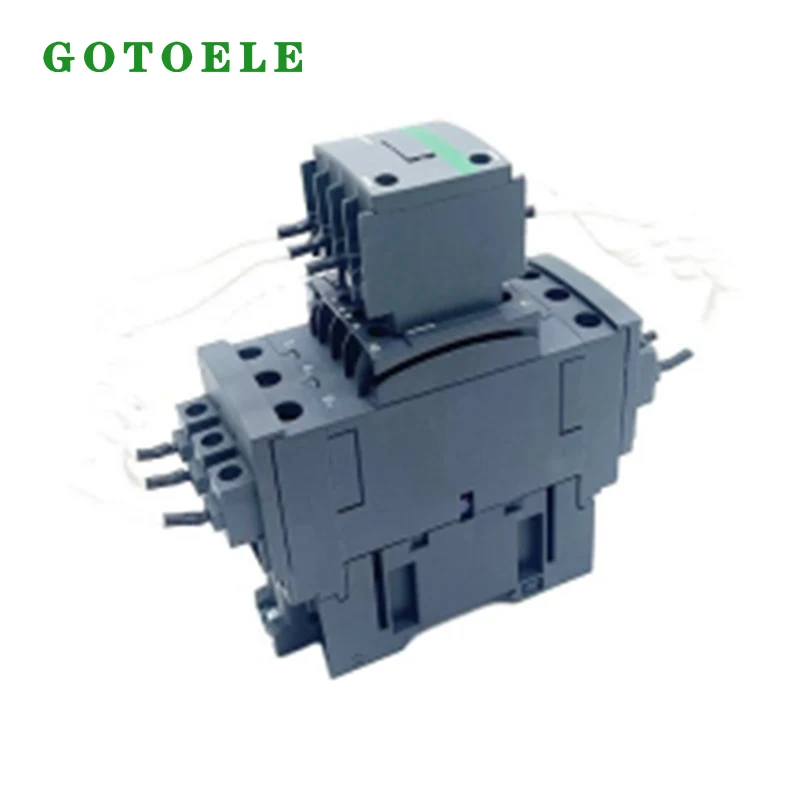

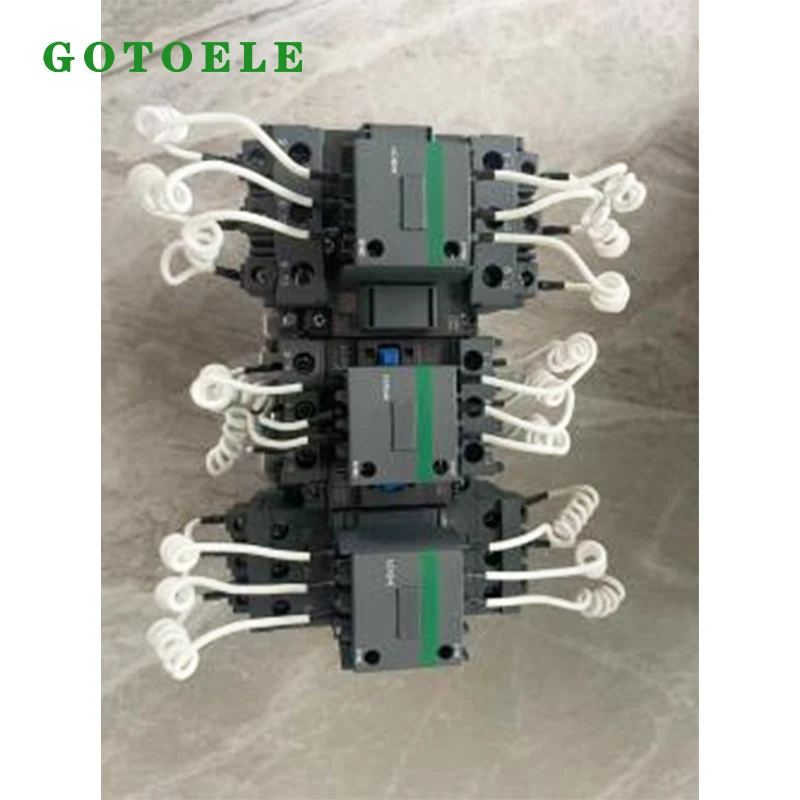

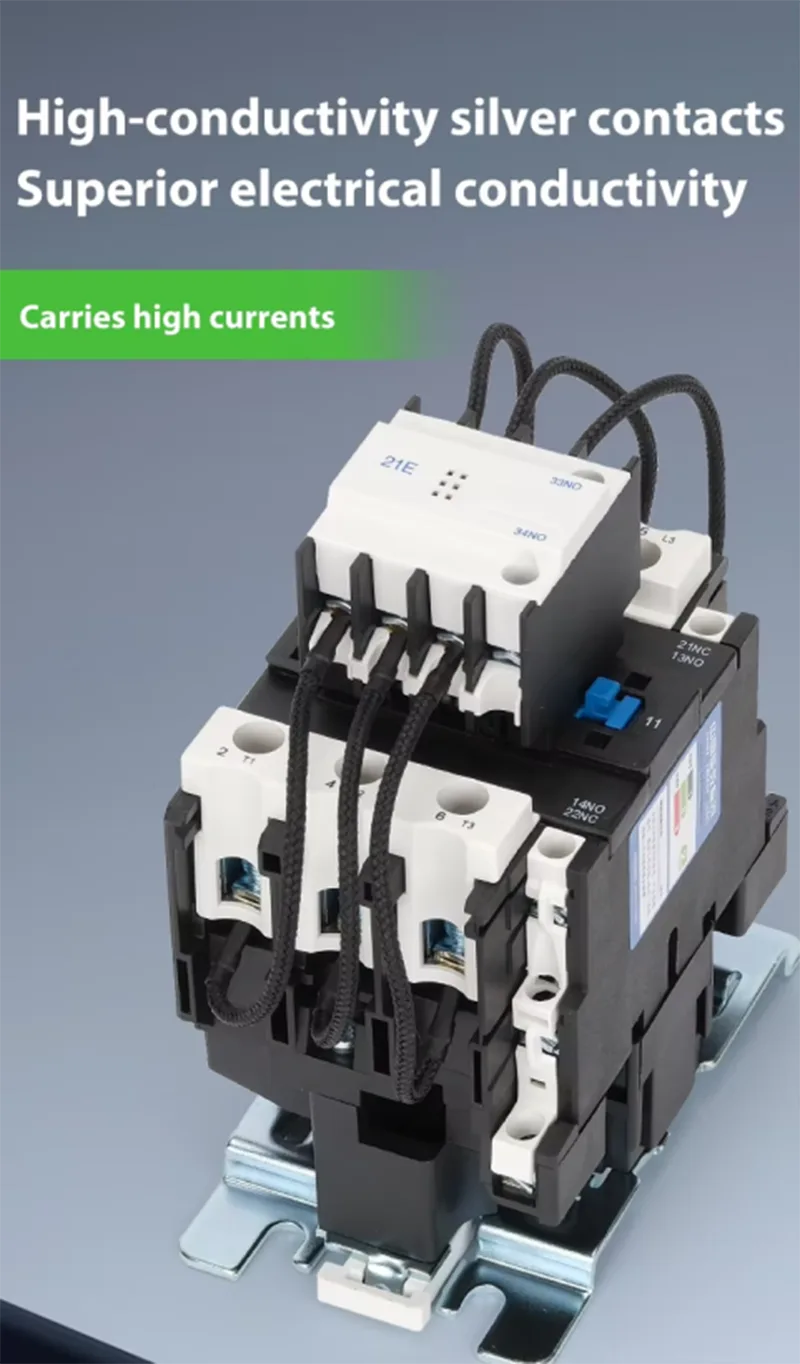

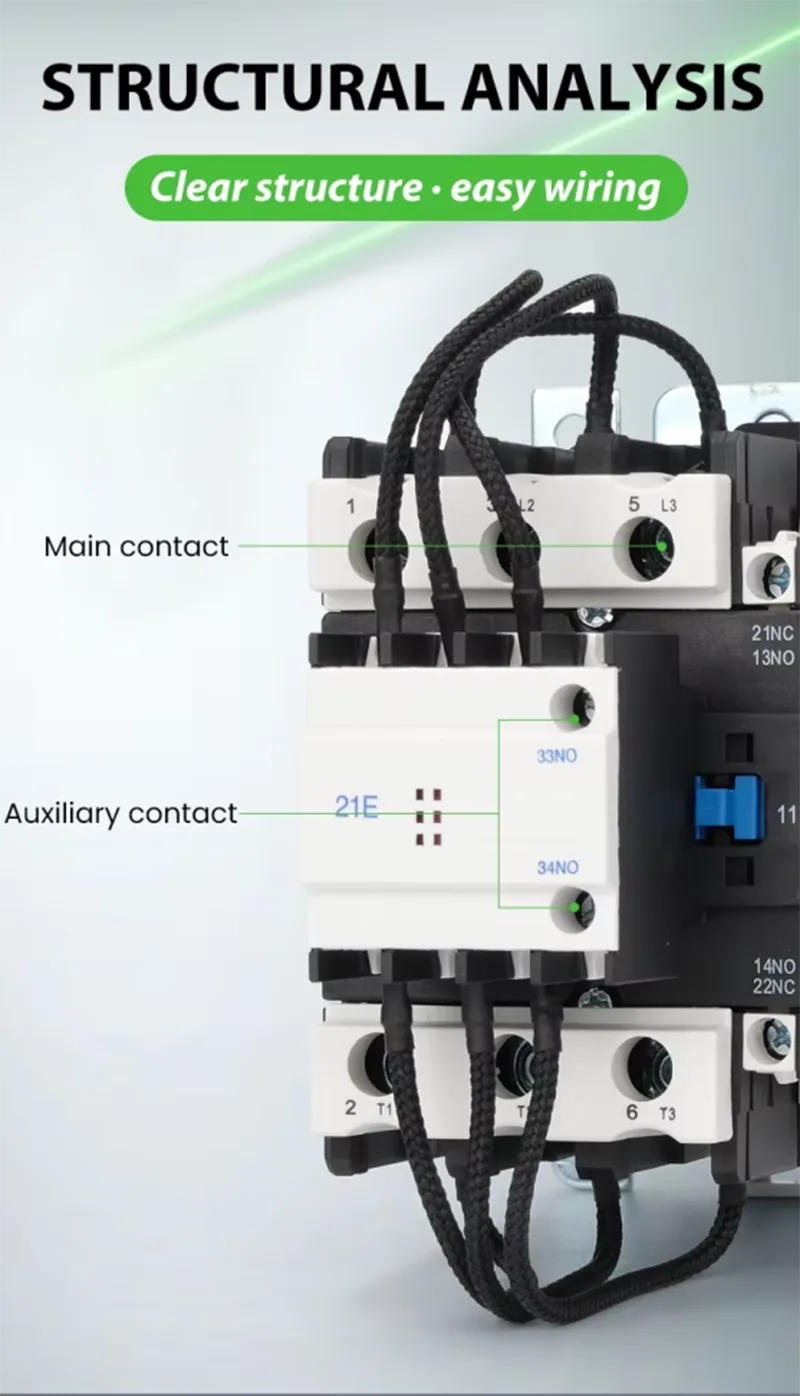

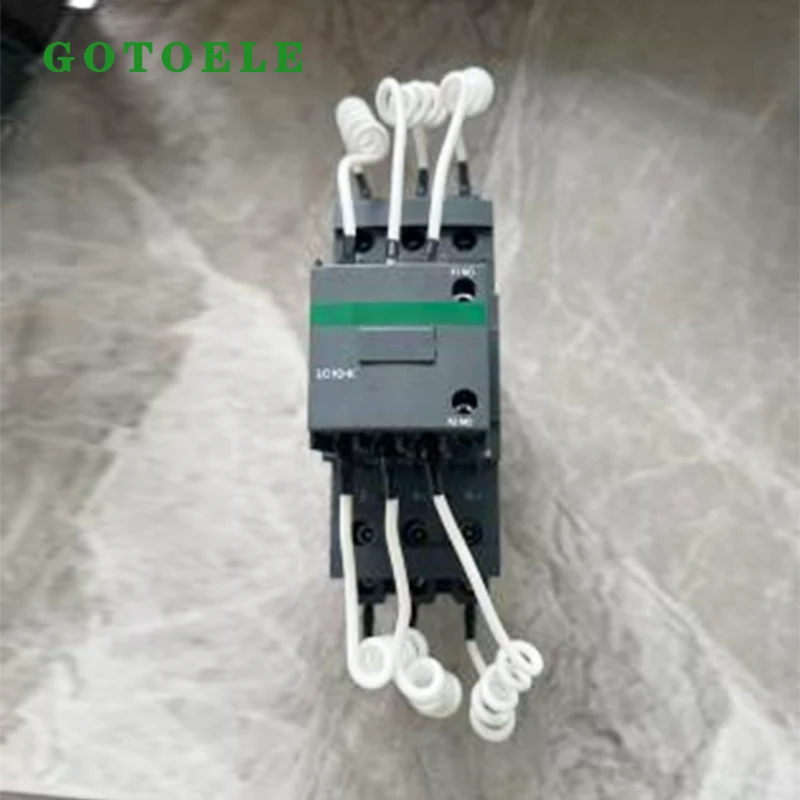

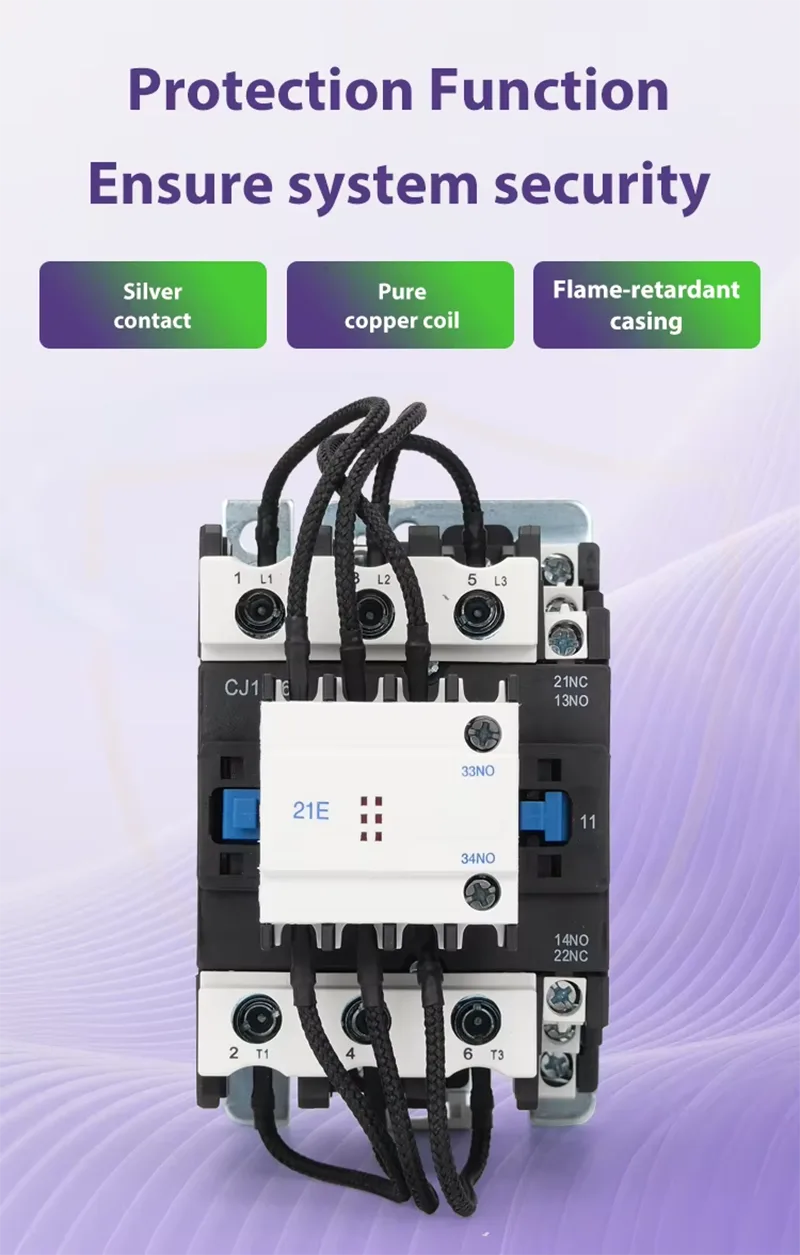

CJ19-65A 21E Capacitor Switching Contactor

The GOTOELE CJ19-65A 21E Capacitor Switching Contactor is developed for frequent switching operations of low-voltage power capacitors. Compared with conventional electromagnetic contactors, this product adopts a special structure with pre-connected damping resistors, which can suppress high transient current during capacitor energizing.

When capacitor banks are switched into the power system, a large inrush current may occur due to voltage difference between the capacitor and grid. Without proper control, this impact current can accelerate contact erosion, shorten capacitor lifespan and reduce compensation cabinet reliability.

The CJ19-65A/21E solves this problem by controlling the capacitor switching process through current limiting technology, ensuring smoother connection and longer service life of both contactor and capacitor components.

It is mainly used in automatic power factor correction (APFC) systems, capacitor compensation cabinets, distribution panels and industrial energy management equipment.

Why Choose Capacitor Switching Contactor Instead of Standard AC Contactor?

A standard AC contactor is mainly designed for motor loads and resistive loads, while capacitor switching requires special consideration because capacitor banks generate high transient current during closing operation.

The CJ19-65A/21E provides several advantages compared with ordinary contactors:

The built-in current limiting structure reduces switching impact, minimizing contact welding risks caused by capacitor charging current.

The optimized contact design improves switching reliability under frequent compensation cycles.

The product is better matched with automatic reactive power controllers, allowing capacitor banks to be switched on and off according to real-time power factor requirements.

For factories with large numbers of motors, compressors, pumps and other inductive loads, this dedicated capacitor switching solution helps maintain stable power quality and improve electrical system efficiency.

Typical Application Areas

Industrial Power Distribution Systems

The CJ19-65A/21E is widely installed inside low-voltage reactive power compensation cabinets in manufacturing plants.

Typical applications include:

1. Automotive component factories with multiple production motors.
2. Plastic injection molding plants with continuous mechanical loads.
3. Metal processing workshops with welding machines and machining equipment.
4. Textile and packaging factories operating large numbers of induction motors.

In these environments, the capacitor contactor works together with capacitor banks and power factor controllers to automatically compensate reactive power generated by inductive loads.

Commercial and Infrastructure Electrical Systems

The product is also suitable for:

1. Shopping mall distribution rooms.
2. Office building electrical systems.
3. Data center auxiliary power systems.
4. Pump stations and water treatment facilities.

By improving power factor, users can reduce unnecessary reactive current flowing through cables and transformers.

Real Application Experience

Thailand Automotive Parts Factory Reactive Power Compensation Project

Project Time: 2025

Customer Type: Automotive component manufacturer

Installed Quantity: 36 units CJ19-65A 21E Capacitor Switching Contactors

Application Environment:

Three-phase 380V low-voltage distribution system

800kVA distribution transformer

Factory operating hours: 20 hours/day

Main loads: CNC machines, compressors, cooling systems and production motors

Before installation, the factory experienced unstable power factor caused by large inductive loads. The existing compensation cabinet required frequent capacitor switching and suffered from contact wear problems.

After replacing conventional switching components with GOTOELE CJ19-65A/21E capacitor contactors, the compensation system achieved more stable capacitor switching operation. The power factor was improved from approximately 0.72 to 0.95, while maintenance frequency of the compensation cabinet was significantly reduced.

The project demonstrated the reliability of GOTOELE capacitor switching solutions in continuous industrial power management applications.

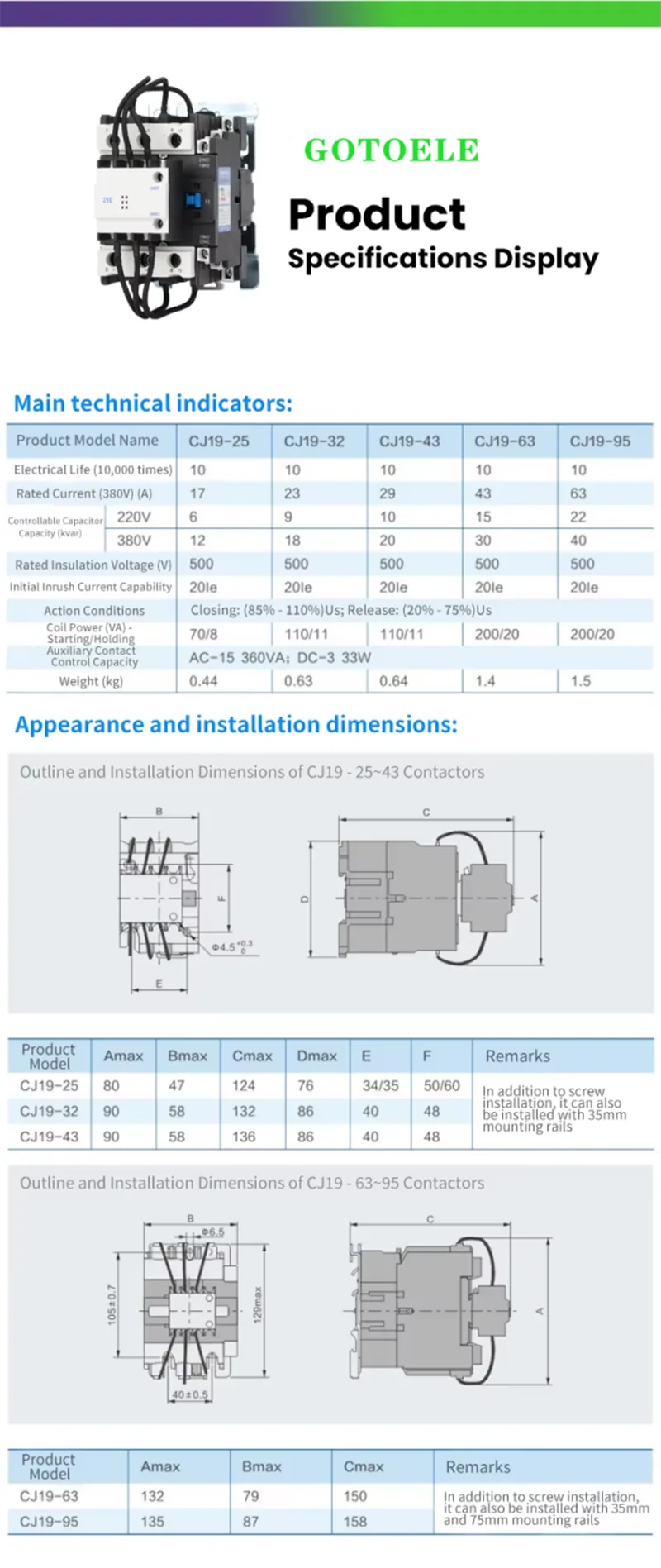

Core Parameters

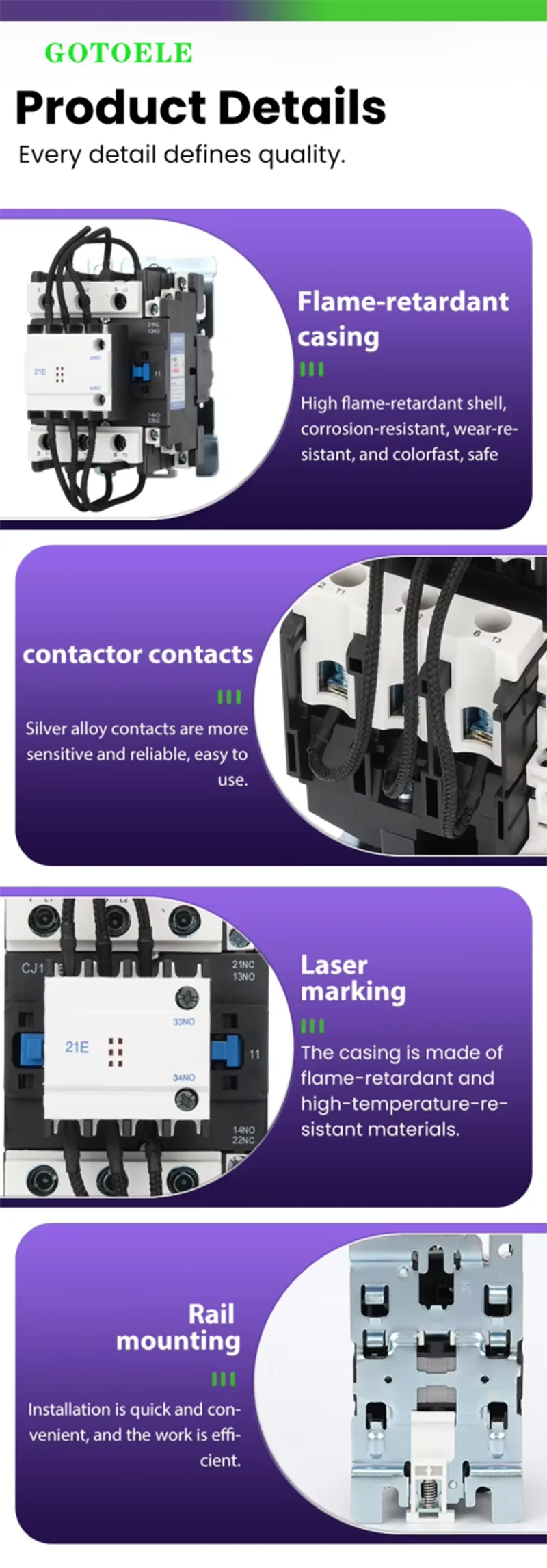

Product Advantages

1. Designed Specifically for Capacitor Switching

Unlike ordinary AC contactors, CJ19-65A/21E is optimized for capacitor bank switching applications. The integrated damping resistance structure reduces high-frequency impact current during capacitor connection, improving system stability.

2. Protects Capacitors and Extends Compensation System Life

Frequent capacitor switching may cause contact burning and capacitor aging. This product reduces switching stress and helps extend the service life of compensation cabinet components.

3. Stable Performance Under Frequent Switching Conditions

Automatic power factor correction systems require repeated switching operations according to load changes. CJ19-65A/21E provides reliable operation for industrial compensation systems requiring frequent switching cycles.

4. Easy Integration Into Existing Compensation Cabinets

The compact structure allows convenient installation in standard low-voltage cabinets. It can be integrated with capacitor controllers, thermal protection devices and compensation modules without complicated modifications.

Production and Quality Control

GOTOELE manufactures CJ19-65A 21E Capacitor Switching Contactors in Zhejiang, China, with professional production processes covering component assembly, electrical performance testing and finished product inspection.

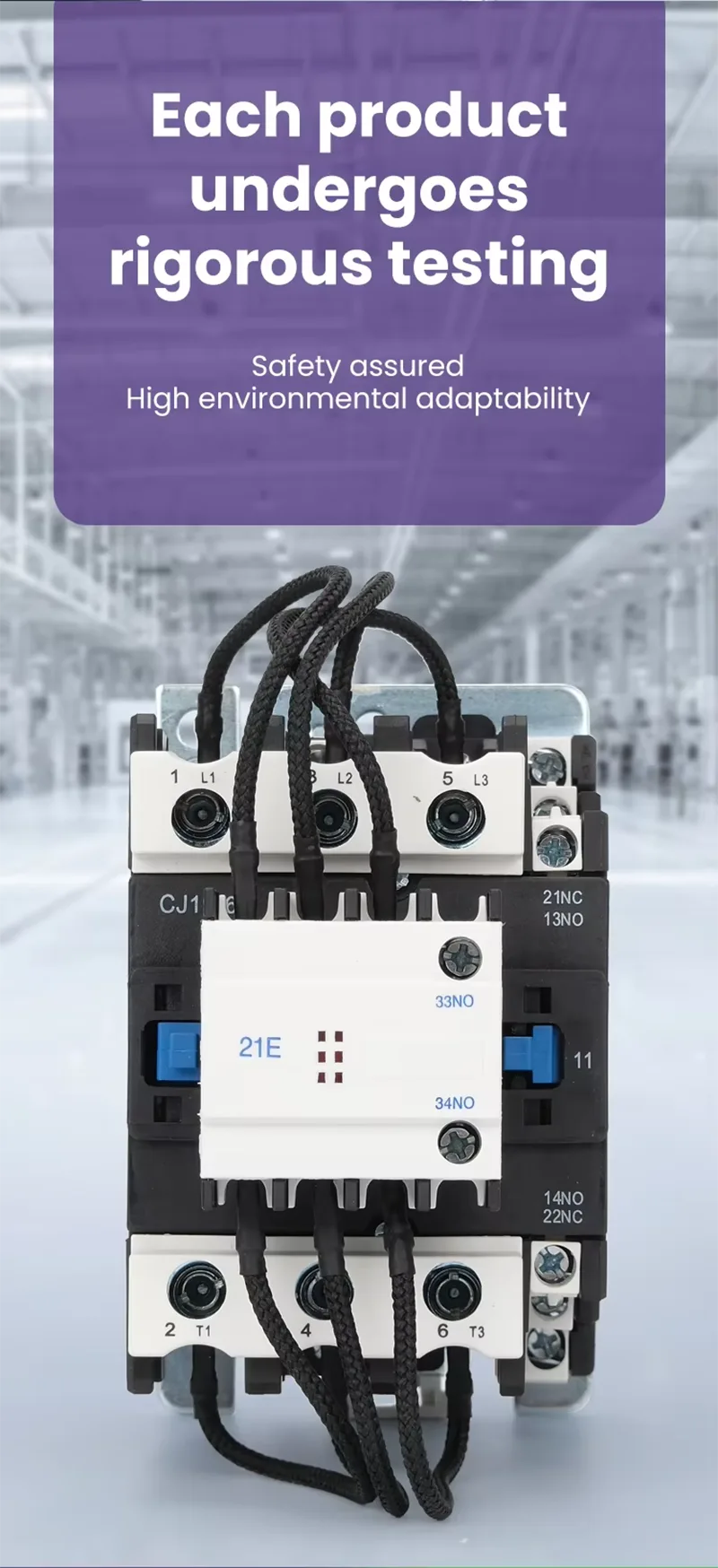

Each product undergoes strict inspection before shipment, including:

1. Contact resistance testing.

2. Coil voltage verification.

3. Switching performance testing.

4. Mechanical operation inspection.

Through standardized manufacturing procedures and ISO9001 quality management, GOTOELE ensures consistent performance for global industrial customers.

Packaging and Delivery

CJ19-65A 21E Capacitor Switching Contactors are packed with export-standard cartons designed for international transportation.

Standard delivery time is approximately 10-15 days for bulk orders.

GOTOELE also provides OEM customization services, including:

1. Customized logo printing.
2. Product label customization.
3. Packaging design.
4. Technical parameter adjustment according to customer requirements.

FAQ

Q1: What is the difference between CJ19 capacitor contactor and normal AC contactor?

CJ19 capacitor switching contactor is specially designed for capacitor banks and includes current limiting technology to reduce switching inrush current. Normal AC contactors are mainly designed for motors and general loads.

Q2: Where is CJ19-65A/21E commonly used?

It is mainly used in low-voltage reactive power compensation cabinets, APFC systems, industrial distribution panels and capacitor bank control equipment.

Q3: Can GOTOELE provide OEM customization?

Yes. GOTOELE supports OEM services including branding, packaging customization and technical parameter adjustments according to customer requirements.

GOTOELE provides reliable capacitor switching solutions for global industrial power systems through professional manufacturing capability, strict quality control and practical application experience. The CJ19-65A/21E helps customers achieve safer capacitor switching, improved power factor and more efficient electrical energy management.
