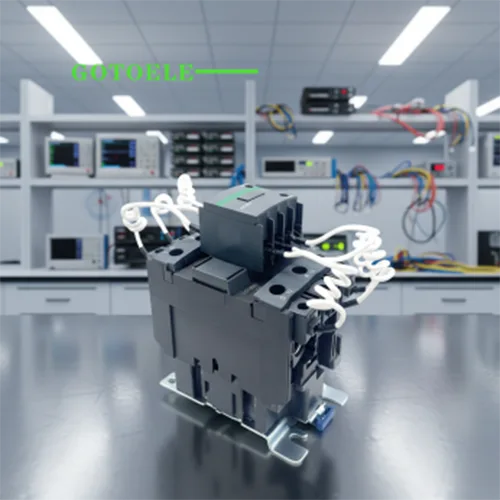

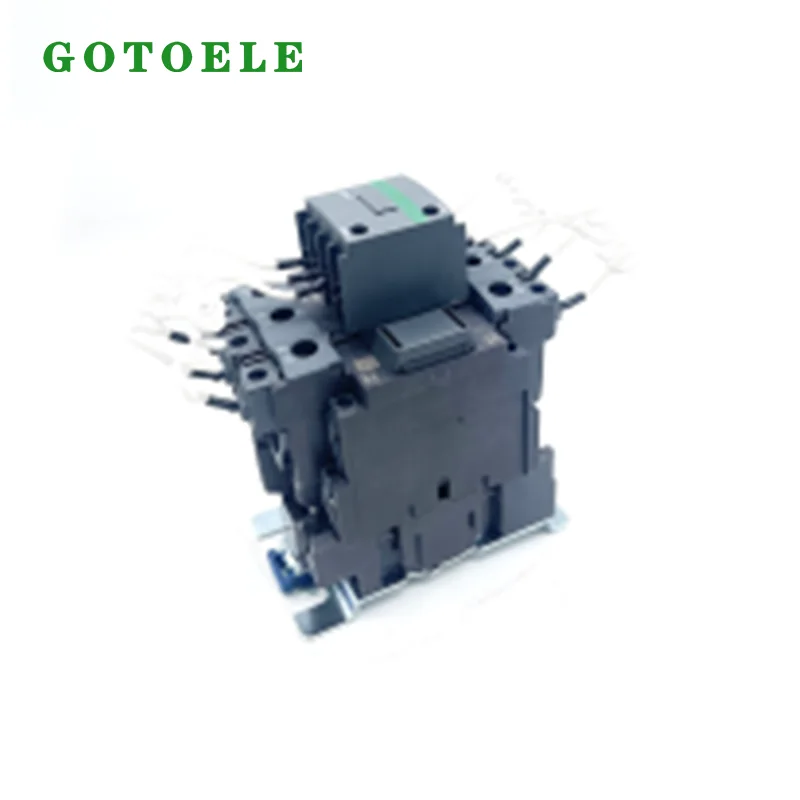

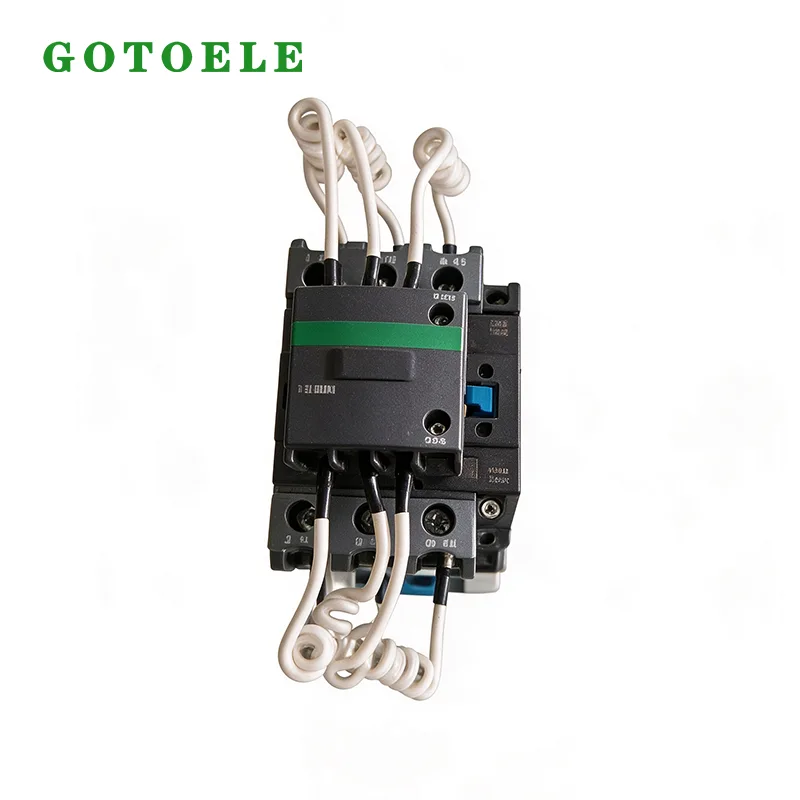

CJ19-95 21E Capacitor Switching Contactor

The GOTOELE CJ19-95 21E Capacitor Switching Contactor is developed for applications requiring frequent switching of larger capacitor banks in low-voltage distribution systems.

In industrial power networks, motors, compressors, pumps and other inductive equipment consume reactive power during operation. When reactive power increases, it causes higher current flow through transformers and cables, resulting in energy losses and reduced power system efficiency.

The CJ19-95/21E works together with automatic power factor controllers and capacitor banks to connect or disconnect compensation capacitors according to actual load conditions. Its dedicated capacitor switching design reduces the impact current generated during capacitor energizing, helping protect contact points and improve the service life of compensation equipment.

Compared with smaller capacitor contactors, the CJ19-95/21E provides higher switching capability and is more suitable for centralized compensation cabinets used in medium and large industrial facilities.

Application Analysis: Where CJ19-95/21E Creates More Value

Large Industrial Factory Power Compensation Cabinets

The main application area of CJ19-95/21E is large-scale industrial power distribution systems.

Typical installation locations include:

· Automobile manufacturing plants

· Steel processing factories

· Chemical production facilities

· Large machining workshops

· Injection molding factories

· Textile production lines

These factories usually operate dozens or hundreds of motors simultaneously. The continuous operation of inductive loads results in unstable power factor and increased reactive current.

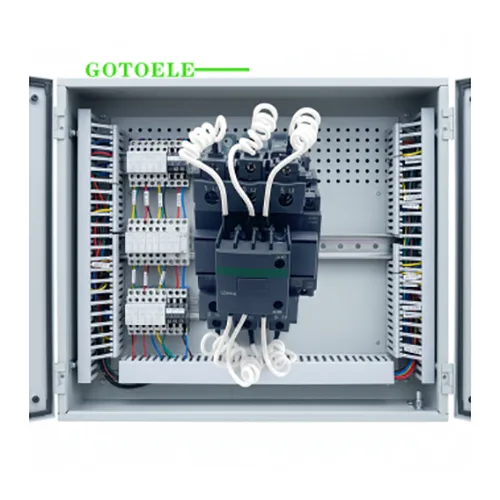

Installed inside automatic capacitor compensation cabinets, CJ19-95/21E controls multiple capacitor groups to maintain stable power factor and reduce unnecessary electrical losses.

High-Capacity Capacitor Bank Switching

For compensation systems with larger capacitor capacity, small contactors may experience accelerated contact wear caused by frequent switching impact.

CJ19-95/21E is designed for higher-capacity capacitor switching applications, providing:

· More stable capacitor group switching

· Better resistance against switching impact

· Longer operational lifespan under frequent compensation cycles

It is especially suitable for centralized compensation systems where multiple capacitor stages are automatically controlled according to factory load changes.

CJ19-95/21E Compared With Standard AC Contactors

A common AC contactor is mainly designed for motor starting and stopping, while capacitor switching requires different electrical characteristics.

The CJ19-95/21E includes a dedicated current limiting mechanism that helps reduce:

· Capacitor charging surge current

· Contact surface damage

· Switching noise

· Abnormal heating during capacitor connection

For power factor correction applications, using a dedicated capacitor switching contactor provides better long-term stability than using ordinary motor contactors.

Real Application Experience

Indonesia Metal Processing Factory Power Factor Improvement Project

Project Time: 2025

Customer Type: Large metal processing manufacturer

Installed Quantity: 24 units CJ19-95 21E Capacitor Switching Contactors

Application Environment:

· Three-phase 400V low-voltage distribution system

· 1250kVA transformer capacity

· Workshop operating time: 18 hours/day

· Main loads: CNC machines, welding equipment, compressors and hydraulic systems

· Existing power factor: around 0.75

Due to the high proportion of inductive equipment, the factory experienced increased reactive power consumption and unstable electrical efficiency.

The CJ19-95/21E was installed in the automatic reactive power compensation cabinet to control multiple capacitor groups. After system operation adjustment, the power factor improved to approximately 0.96, reducing reactive power losses and improving transformer utilization.

After 12 months of operation, the compensation cabinet maintained stable switching performance, and the customer reported fewer maintenance requirements compared with previous capacitor switching components.

Core Parameters

Product Advantages

1. Designed for Larger Reactive Power Compensation Systems

CJ19-95/21E provides higher switching capability than smaller capacitor contactors, making it suitable for industrial compensation cabinets with larger capacitor groups.

Its optimized structure allows stable operation in applications requiring frequent capacitor switching.

2. Reduced Capacitor Switching Impact

During capacitor connection, transient current can reach several times the normal operating current.

The built-in current limiting design reduces this impact, protecting:

· Contactor contacts

· Capacitor units

· Compensation cabinet components

This improves overall system reliability.

3. Suitable for Automatic Power Factor Control Systems

CJ19-95/21E can be integrated with:

· Automatic power factor controllers

· Capacitor banks

· Low-voltage distribution panels

It supports automatic compensation strategies according to real-time electrical loads.

4. Reliable OEM Manufacturing Capability

GOTOELE provides professional production and customization services for global electrical equipment distributors and OEM customers.

Available customization options include:

· Brand labeling

· Packaging design

· Coil voltage customization

· Product parameter adjustment

Production and Quality Control

GOTOELE manufactures CJ19-95 21E Capacitor Switching Contactors in Zhejiang, China, with standardized production processes covering component assembly, electrical testing and performance inspection.

Each product undergoes strict quality verification before shipment, including:

· Coil voltage testing

· Contact performance inspection

· Mechanical operation testing

· Electrical switching verification

Through ISO9001 quality management procedures, GOTOELE ensures consistent product quality for international industrial applications.

Packaging and Delivery

CJ19-95/21E products are packed using export-standard packaging materials suitable for international transportation.

Standard bulk delivery time is approximately 10-15 days.

GOTOELE supports OEM services including:

· Customized logo printing

· Product labels

· Packaging solutions

· Customer-specific requirements

FAQ

Q1: What is the difference between CJ19-95/21E and ordinary AC contactors?

CJ19-95/21E is specially designed for capacitor switching applications. It uses current limiting technology to reduce capacitor charging impact, while ordinary AC contactors are mainly designed for motor control.

Q2: What type of factories need CJ19-95/21E?

It is commonly used in factories with large inductive loads, including metal processing plants, automotive factories, chemical facilities and large manufacturing workshops.

Q3: Can CJ19-95/21E be used in automatic power factor correction cabinets?

Yes. It is specifically designed for APFC systems and works together with capacitor controllers to automatically switch capacitor banks according to power factor requirements.

GOTOELE CJ19-95 21E Capacitor Switching Contactor provides a reliable solution for high-capacity reactive power compensation systems. Through dedicated capacitor switching technology, stable manufacturing processes and application experience in industrial power systems, GOTOELE helps global customers achieve improved power efficiency and more reliable electrical operation.
