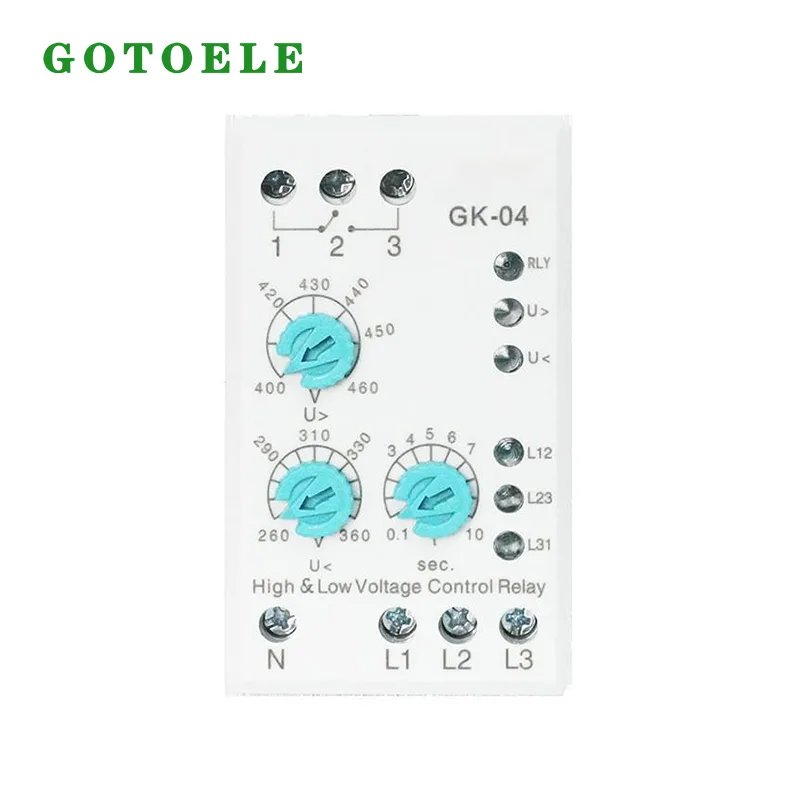

Three Phase Phase Sequence and Over Under Voltage Protection Relay

Different from traditional single protection relays, this device integrates multiple protection functions including phase sequence monitoring, over voltage protection, under voltage protection and phase loss detection in one compact unit. The non-neutral design allows direct connection to three-phase power systems without requiring an additional neutral line, simplifying installation for industrial distribution applications. The Three Phase Phase Sequence and Over Under Voltage Protection Relay helps prevent equipment damage caused by abnormal grid conditions and improves operational safety in industrial environments.

Intelligent Three-Phase Power Monitoring and Protection Solution

The Three Phase Phase Sequence and Over Under Voltage Protection Relay is developed for applications where continuous monitoring of three-phase power quality is required.

The device continuously detects the condition of L1, L2 and L3 three-phase power lines. When abnormal conditions such as incorrect phase sequence, voltage fluctuation or phase failure occur, the relay immediately sends a protection signal to disconnect downstream equipment or stop the control circuit.

By integrating several protection functions into one compact module, the relay reduces the need for multiple independent protection components, helping customers simplify electrical cabinet design and improve system reliability.

The non-neutral structure enables direct installation in three-phase systems without additional neutral wiring, making it suitable for industrial distribution cabinets, machinery control panels and outdoor electrical equipment.

Comprehensive Protection Functions for Three-Phase Equipment

1. Phase Sequence Monitoring Prevents Reverse Operation

Incorrect phase sequence can cause three-phase motors to rotate in the opposite direction, potentially damaging pumps, compressors and mechanical transmission systems.

The relay detects the phase order of incoming three-phase power and prevents equipment startup when the phase sequence is incorrect.

This function is especially important for motor-driven equipment where reverse rotation may cause mechanical damage, production interruption or safety risks.

2. Over Voltage Protection Reduces Electrical Damage Risk

Voltage fluctuations in industrial power networks may exceed equipment operating limits and damage sensitive electrical components.

The relay continuously monitors three-phase voltage values. When voltage rises above the preset protection threshold, it activates the protection output and disconnects the load circuit.

This helps protect motors, inverters, control systems and automation equipment from overheating, insulation damage and premature failure caused by excessive voltage.

3. Under Voltage Protection Improves Motor Reliability

Low voltage conditions may cause motors to draw excessive current while producing insufficient torque, leading to overheating and winding damage.

The relay detects abnormal low voltage situations and provides timely protection before equipment operates under unsafe conditions.

It is suitable for industrial areas with unstable power supply, agricultural facilities and remote applications where voltage drops may occur frequently.

4. Phase Loss Protection Protects Three-Phase Loads

Phase loss is one of the most common causes of three-phase motor failure.

When one phase disappears due to cable problems, fuse failure or power supply faults, the relay quickly identifies the abnormal condition and prevents continued operation under unbalanced power.

This significantly reduces the risk of motor burnout and unexpected production downtime.

Real Application Experience and Project Verification

Three-Phase Motor Protection Project in Indonesia Manufacturing Plant

Based on GOTOELE's experience in low-voltage electrical manufacturing and international industrial applications, this protection relay has been used in three-phase equipment protection projects.

In November 2025, an Indonesian food packaging machinery manufacturer installed 180 units of GOTOELE Three Phase Phase Sequence and Over Under Voltage Protection Relay in production line control cabinets.

Project information:

· Customer type: Food packaging machinery manufacturer

· Country: Indonesia

· Project time: November 2025

· Installation quantity: 180 units

· Protected equipment: Three-phase motors, conveyor systems and auxiliary pumps

· System voltage: AC380V 50Hz

· Operating environment temperature: -5℃ to 45℃

· Application environment: Factory production workshop with continuous operation

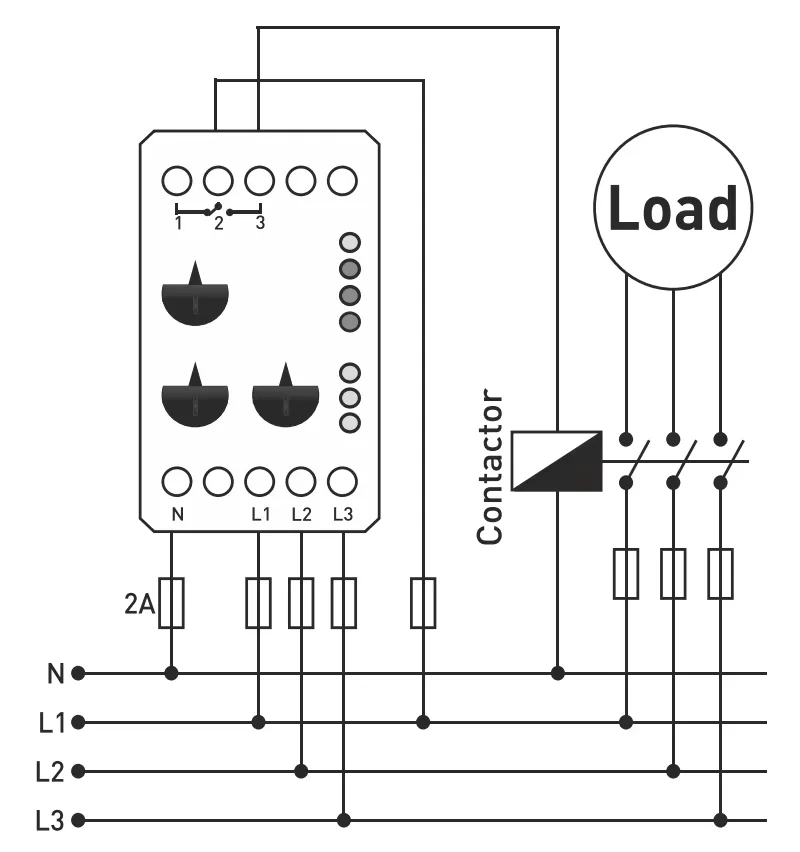

The relay was installed at the front-end protection section of motor control cabinets to monitor incoming three-phase power conditions.

During continuous production operation, the device helped identify abnormal voltage conditions and prevented motors from operating under unstable power supply conditions. The customer selected this solution because it combined multiple protection functions in one compact DIN rail module, reducing cabinet installation space and maintenance complexity.

Core Parameters

Product Advantages

1. Multi-Protection Integration Saves Cabinet Space

The relay combines phase sequence, voltage and phase loss protection functions into one device.

Compared with using several independent protection modules, this integrated design reduces wiring complexity, saves installation space and improves electrical cabinet organization.

2. Non-Neutral Design Simplifies Electrical Installation

The device is designed for three-phase systems without requiring neutral line connection.

This feature simplifies installation in industrial distribution systems and reduces additional wiring requirements during equipment integration.

3. Real-Time Power Condition Monitoring

The relay continuously monitors three-phase power status and responds quickly when abnormal conditions occur.

This allows maintenance teams to identify electrical problems before they develop into serious equipment failures.

4. Suitable for Industrial Automation Applications

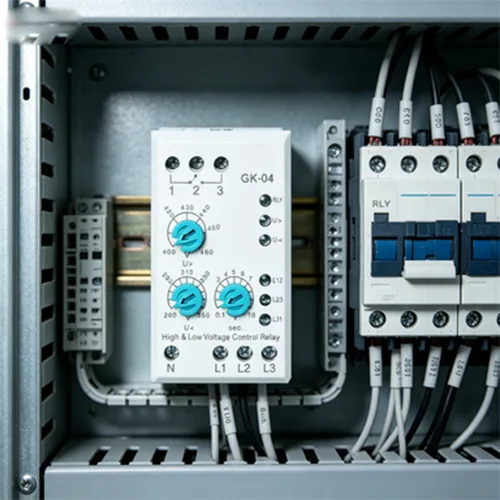

The compact DIN rail structure allows easy integration into control panels, distribution boxes and automation systems.

It is widely used in manufacturing equipment, pumps, compressors, HVAC systems and industrial electrical protection applications.

Manufacturing and Quality Control

GOTOELE is a professional manufacturer and exporter specializing in low-voltage electrical products, including protection relays, contactors, circuit protection devices and industrial control components.

With more than 14 years of electrical manufacturing experience, GOTOELE integrates product development, production management and global export services.

The company is located in Liushi, Yueqing, Zhejiang, China, with a professional production facility and standardized manufacturing processes.

During production of the Three Phase Phase Sequence and Over Under Voltage Protection Relay, GOTOELE performs strict quality inspections including voltage detection accuracy testing, relay response testing, terminal reliability testing and aging tests.

All products follow ISO9001 quality management procedures and CE certification requirements to ensure stable performance for global industrial customers.

Packaging and Delivery

The Three Phase Phase Sequence and Over Under Voltage Protection Relay is packed according to international export standards to ensure safe transportation.

Standard packaging protects products from mechanical damage and environmental impact during logistics.

For bulk orders, GOTOELE provides efficient production scheduling with typical delivery times of 10-15 days. OEM services including customized labels, packaging and technical specifications are available for distributors and industrial equipment manufacturers.

PRODUCT PARAMETERS

FAQ

1. What protection functions does this relay provide?

It provides phase sequence protection, over voltage protection, under voltage protection and phase loss protection for three-phase electrical systems.

2. Does this relay require a neutral line?

No. This model adopts a non-neutral design and can be directly connected to three-phase power systems without additional neutral wiring.

3. What equipment can use this protection relay?

It is suitable for three-phase motors, pumps, compressors, industrial machinery, HVAC equipment and automation control systems.

4. Does GOTOELE support OEM customization?

Yes. GOTOELE provides OEM services including customized packaging, labels and product specifications according to customer requirements.

GOTOELE combines professional electrical manufacturing capability, practical industrial application experience and strict quality control systems to provide reliable three-phase power protection solutions for global customers. The Three Phase Phase Sequence and Over Under Voltage Protection Relay helps industries reduce electrical risks, improve equipment reliability and maintain stable production operation.
